Product Description
The inverter welder is used for MIG / MAG welding. The welder uses a high power IGBT to transmit frequencies 50 / 60Hz to 20kHz. The advantages of the welding machine include, among others, energy saving and the possibility of automatic correction of voltage pulsations, low sparking, high duty cycle.

Product Features:


Ergonomic carrying handle
For MIG / MAG welding.
High power IGBT transistor for frequency transmission

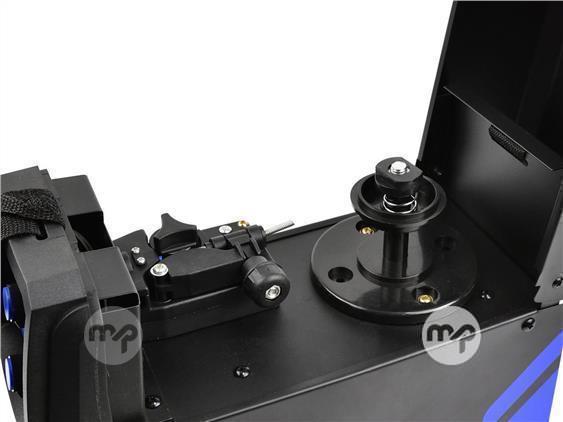

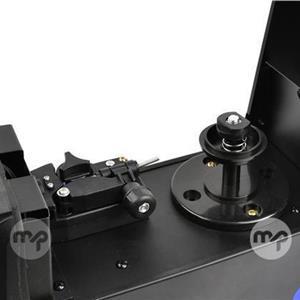

Regular wire feed speed
Quiet operation without electromagnetic noise


Technical data:

Working mode: MIG / TIG / MMA
Supply voltage: 230V
No-load voltage: 16-22A
Frequency: 50Hz
Supported wire diameters: 0.6 / 0.8 mm
Supported electrode diameters: 2.5 mm - 4 mm
Welding methods: MIG / TIG / MMA
Rated welding cycle: 60%, low heat emission!
Welding current: 30-130 A (MIG), 20-120A (MMA), 10 - 120A (TIG)
Wire speed: 3-15 m / min

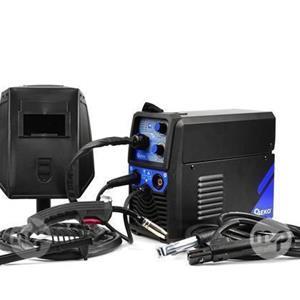

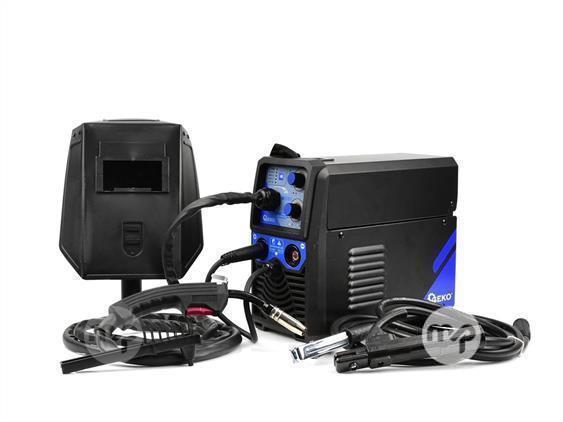

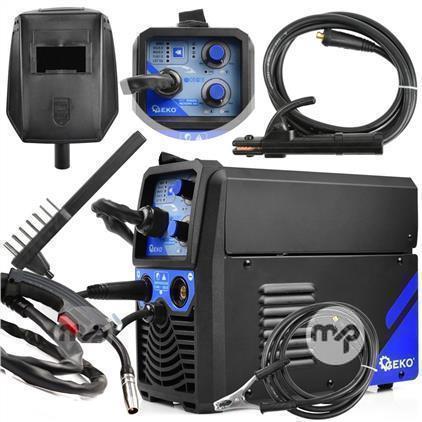

The composition of the set:

MIG / TIG / MMA welder

DIN ground cable with clamp

Welding mask

Cleaning brush

Mass welding cable

OPTIONAL TIG GUN

Technical Data
Wire Dia. Size 0,6 - 0,8 mm
MMA Electrode Size 1,6 - 4,0 mm
No-load Voltage 55V
I1max 29.6 A
I1eff 22.9 A
Power Factor 0.93
MIG
MIG Duty Cycle 60% 100%
Current 160 A 124A
Voltage 22.0 V 20.2 V
MMA
MMA Duty Cycle 60% 100%
Current 160 A 124 A
Voltage 26.4 V 25.0 V

2 YEARS GUARANTEE
