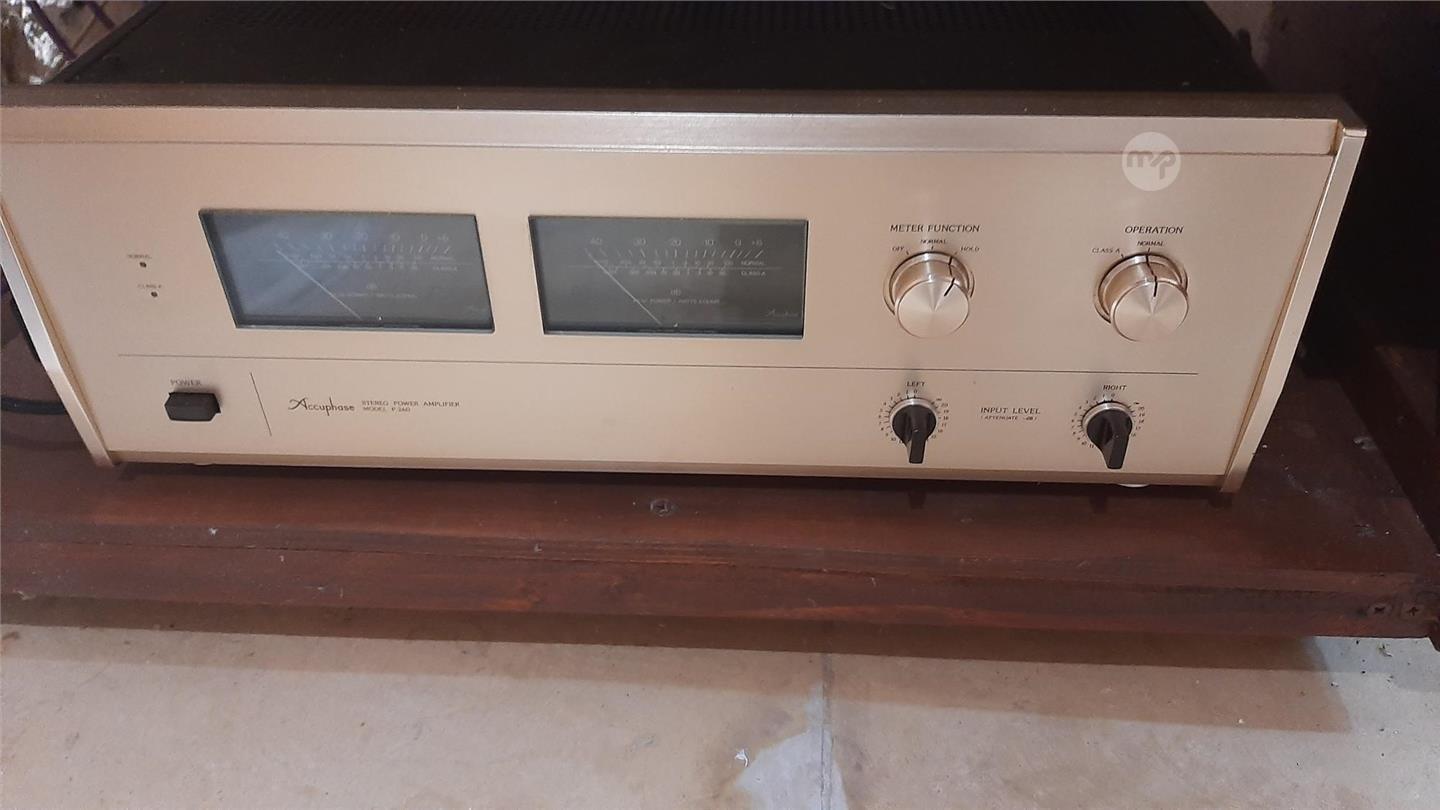

Accuphase P-260 Poweramplifier

€ 425

Description

Good used condition Poweramp from Accuphase, serviced and re-capped in NL in 2020, invoice available.
It has minor transportation damage on the back, hence the price!


Type Stereo power amplifier
Continuous average power (new IHF, both channel operation
20 Hz to 20 kHz, Distortion Rate 0.01% or Less) Normal Operation
4 Ω : 180W/ch
8 Ω : 130W/ch
16 Ω : 65W/ch
Class-A Operation
4 Ω : 45W/ch
8 Ω : 30W/ch
16 Ω : 15W/ch
Harmonic distortion factor (both channel operation
Output 0.25W ~ Rated Output, 20 Hz ~ 20 kHz) 4 Ω : 0.01% or less
8 Ω : 0.005% or less
16 Ω : 0.005% or less
IM distortion factor (new IHF) Not more than 0.003%
Frequency characteristic Rated output : 20 Hz ~ 20000 hz + 0 -0.2 dB
New IHF : 0.4 Hz to 120000 Hz + 0 -3.0 dB
Damping factor (new IHF) 80 (20 Hz to 20000 Hz)
120(50Hz)
Input Sensitivity / Input Impedance Rated output : 1.3V/50k Ω
New IHF, 1W output : 0.12V/50k Ω
S/N (A-corrected) 120 dB (Rated Input, Input Short)
100 dB (at new IHF, 1W output)
Output meter Logarithmic compression type -40dB to + 6 dB and output direct reading
With Peak Hold Switch
Semiconductor used 33 tr, 16 fet, 4 ic, 40 di, 2 optocouplers
Pwer 100 V, 117 V, 220 V, 240V/50, 60 Hz
Power consumption
Normal Operation: 63W (non-input)
490W (at 8 Ω load rated output)
Class-A Operation: 195W (no input)
210W (at 8 Ω load rated output)
External dimensions Width 445x Height 160 (Including Legs) x Depth 390 mm
Weight 19.7kg

Collection only!
