LPG Adjustable Regulator, Made in Italy

€ 30.00

Description

Bought for my fireplace, unfortunately it is too large to fit the tight space where the tank is positioned.

2nd Stage LPG Regulator

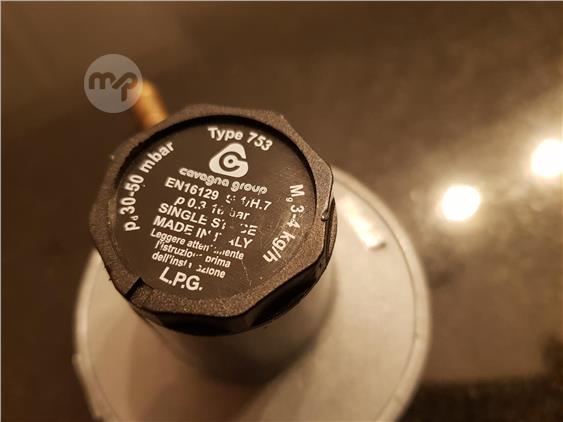

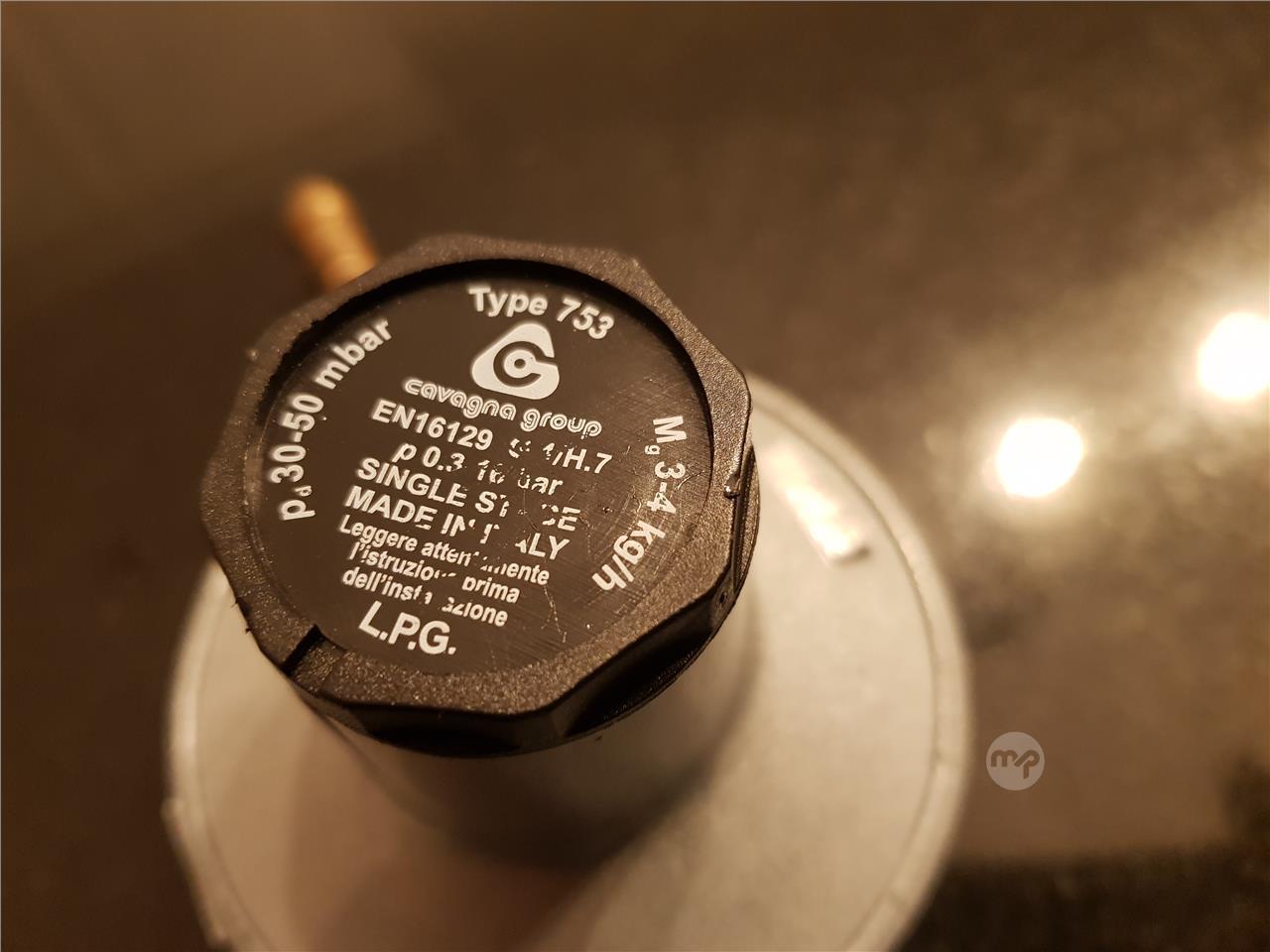

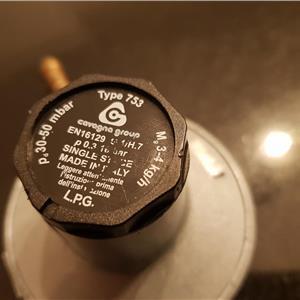

Cavagna Group Type 753

Open Box;
2nd Stage LPG Regulator;
Made in ITALY;
Open Box;
Inlet connection: G.1 - G.2 - G.4 - G.5 - G.6 - G.7 - G.8 - G.9 - G.10 - G.12 - G.13 - G.14 - G.18 - G.23 - G.34 of EN 16129;
Gas: LPG Propane ONLY;
Pressure Range: 30-50 mb
Nominal Flow Rate: 3-4kg/h
Supply Pressure: 0.26 - 0.98 bar / 0.49 - 1.95 bar / 1.02 - 3.9 bar
Minimum Clearance: 20cm (length of regulator - about 25cm is highly recommended for installation)
ORIGINAL PACKAGING NOT INCLUDED!
INSTRUCTIONS NOT INCLUDED!
Materials:

(Body & Cover): Die cast zinc / Water painted
(Test Port Plug): Steel
(Diaphragms): Approved NBR
(Spring): Steel


Type 753/758 regulators are designed for domestic installations. Outlet pressure is adjustable, all adjustment must only be performed by qualified personnel, in compliance with national and European standards in force. These regulators are used in installations with two-stage regulation, they must be mounted as second stage, downstream from a first stage regulator with a outlet pressure of 0.75 bar or 1.5 bar or 3 bar. For a permanent use outside the house, install the regulator in a position protected from the weather, paying great attention to the position of the vent hole. Type 758 are equipped with a relief valve (operating pressure: depending on the regulated pressure range) (the marking “PRV” is visible on the label ) and are generally not type-approved for use in closed premises (see local laws on the subject).

Item Details

10066301
15
Business & Industrial
27/07/2026
New
