Item Feature
Accessories
Instruction manual, hand strap, spare fuse, test leads
Type

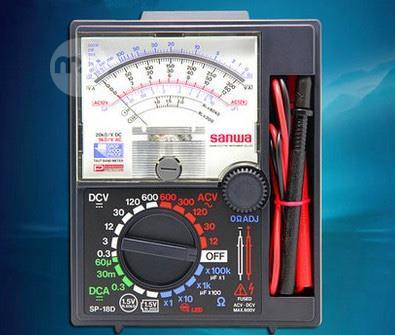

Analog multi-tester
Power
R6P (AA batteries) x2
AC Voltage (V)
12/30/120/300/600(9kohm/V)
DC Voltage (V)
0.3(5kohm)/3/12/30/120/600(20kohm/V)
Range Switching
Manual
Battery Check
1.5V/1.5V Coin cell battery
Incorporated Fuse
phi5.2x20mm(250V/0.5A)
Static Capacity
0.01micro to 1000 micro F
TRUSCO Part Number
284-8571
Weight (g)
About 320
Dimensions (Height H x Width W x Depth D) (mm)
159.5x129x41.5
Resistance (omega)
2k/20k/2M/200M
Frequency Characteristics
30 - 80kHz(AC12V) 30 - 20kHz(AC30V)
DC Current
60micro/30m/300mA
Accurate Temperature and Humidity Range
No condesation in the range of 23+/-2deg C, 5 to 75%RH
Parameter Sensitivity
60.0microA
Purpose
The high resistance to maximum 200Mohm measurable.Up to 0.01micro - 1000microF condenser measurable. Resistance measurement the check of LED is possible at the terminal voltage of 3V. usually also check of the electric battery and the coin electric batt, The high resistance to maximum 200Mohm measurable.Up to 0.01micro - 1000microF condenser measurable. Resistance measurement the check of LED is possible at the terminal voltage of 3V. usually also check of the electric battery and the coin electric battery
