Frequency Response / Acoustic Data:
Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
Nominal impedance: 8 ohms.
Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
Recommended amplifier power: 20-225 watts.
Speaker Specs:

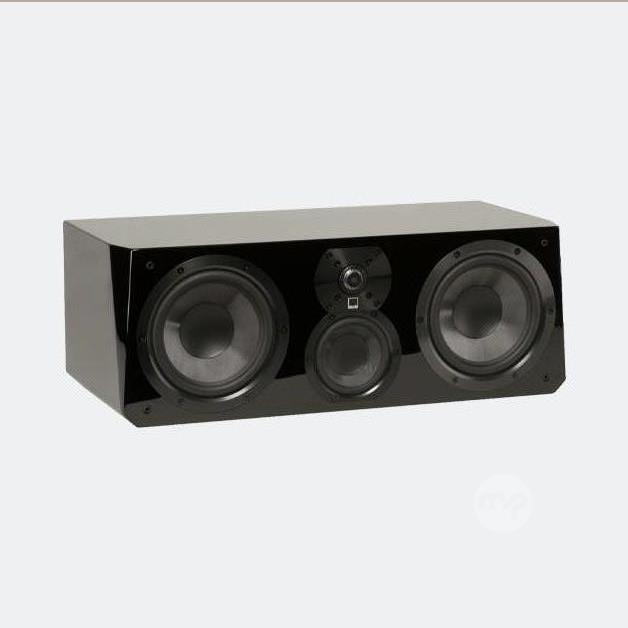

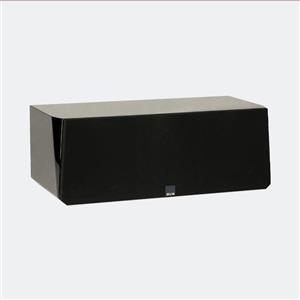

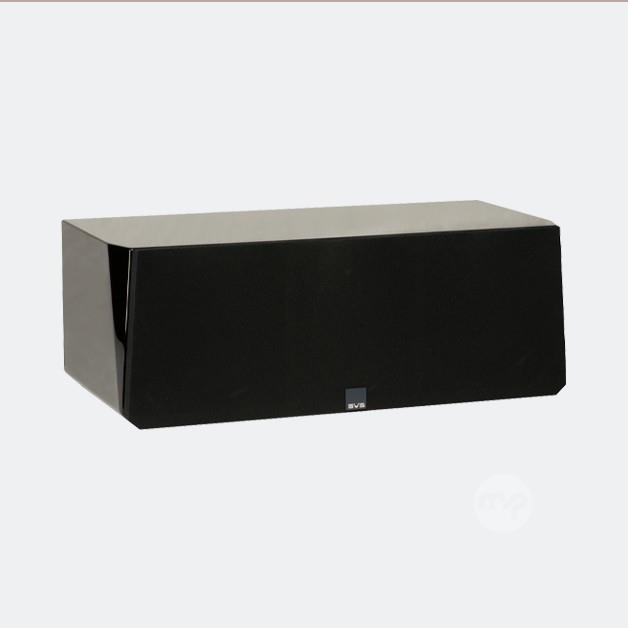

Center Channel Loudspeaker
Real black oak veneer and piano gloss black finish options
Dual gold-plated 5-way binding posts
Dual 1.7" wide-flared rear-firing ports
Cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)
Cabinet Dimensions: 8.2” (H) x 22" (W) x 10.6” (D) (without grille)
Overall Dimensions: 8.2” (H) x 22” (W) x 10.9” (D) (with grille)
Shipped Dimensions: 14" (H) x 27" (W) x 15" (D)
Weight: 31 pounds
Shipped Weight: 35 pounds
Driver Specs:
1” Aluminum Dome Tweeter:
Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
4” Midrange Drivers:
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
Vented voice coil former to minimize air compression artifacts at high drive levels
6.5” Woofers:
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior
