Description:

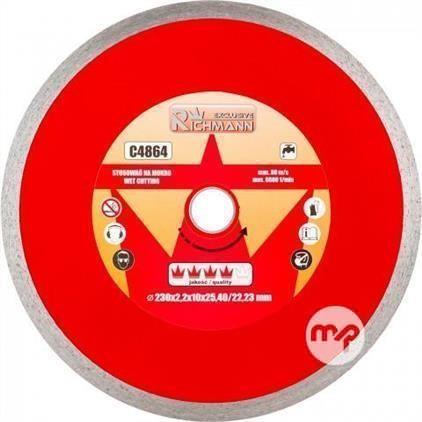

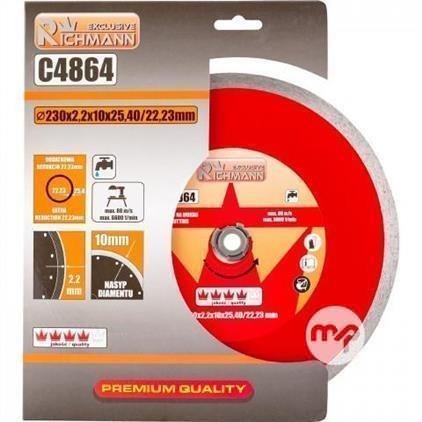

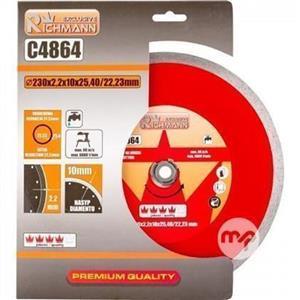

A solid diamond blade intended for cutting materials such as: ceramic tiles, porcelain tiles, marble, tiles, stone tiles, glass, porcelain.
Dedicated to cutting material with an electric tile cutter.
The diameter of the disc is 230 mm, the thickness is 2.2 mm, and the hole is 25.4 mm, and after applying the reduction included in the set, 22.23 mm.
Nastype of diamond on an area of ​​10 mm.
The specific profile of the diamond edge allows the hardest materials to be cut at high speed without compromising the quality of the finish.
For wet cutting in electric tile cutters.

APPLICATION:

- ceramic
tiles - stoneware
- marble
- stone
- brick
- glazed tiles
- stone tiles
- glass
- porcelain
- other similar materials

TECHNICAL DATA:

Type: Smooth diamond blade
For use: wet Blade
diameter [mm]: 230
Blade thickness [mm]: 2.2
Hole diameter [mm]: 25.4 / 22.23
Diamond surface [mm]: 10
Max. Rotational speed [RPM]: 6600
Max. Linear speed [m / s]: 80
Package dimensions [mm]: 285 x 260 x 3
Weight [kg]: 0.611
