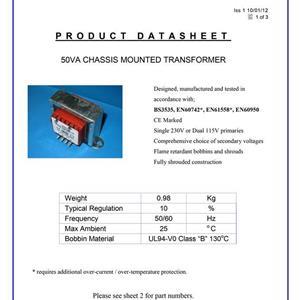

Dagnall Chassis Mount Transformer, Chassis, Safety Isolating, 230V, 2 x 12V, 50 VA, 50Hz / 60Hz
€ 25.00 + € 3.00 DELIVERY
Description
Features:
• Single 230V primary winding
• Double section imperial bobbin
• 6 to 200VA power, 50/60Hz
• Temperature class B (130°C)
• Dielectric strength 3,750Vrms
• Manufactured and tested in accordance with EN60950 and EN61558
Specifications:
• Max. Winding Temperature : 55°C
• Overall Insulation Rating : >50MΩ (at 500V, 20°C)
• Flash Test (isolation test) : Primary/Secondary/Lamination 2.4KVrms
• Winding Wire : Polyurethane coated IEC317 Grade 1
• Tape : 3M No 56 or 3M No 1350Y Thermosetting
• Core : 400/50
• Single 230V primary winding
• Double section imperial bobbin
• 6 to 200VA power, 50/60Hz
• Temperature class B (130°C)
• Dielectric strength 3,750Vrms
• Manufactured and tested in accordance with EN60950 and EN61558
Specifications:
• Max. Winding Temperature : 55°C
• Overall Insulation Rating : >50MΩ (at 500V, 20°C)
• Flash Test (isolation test) : Primary/Secondary/Lamination 2.4KVrms
• Winding Wire : Polyurethane coated IEC317 Grade 1
• Tape : 3M No 56 or 3M No 1350Y Thermosetting
• Core : 400/50
