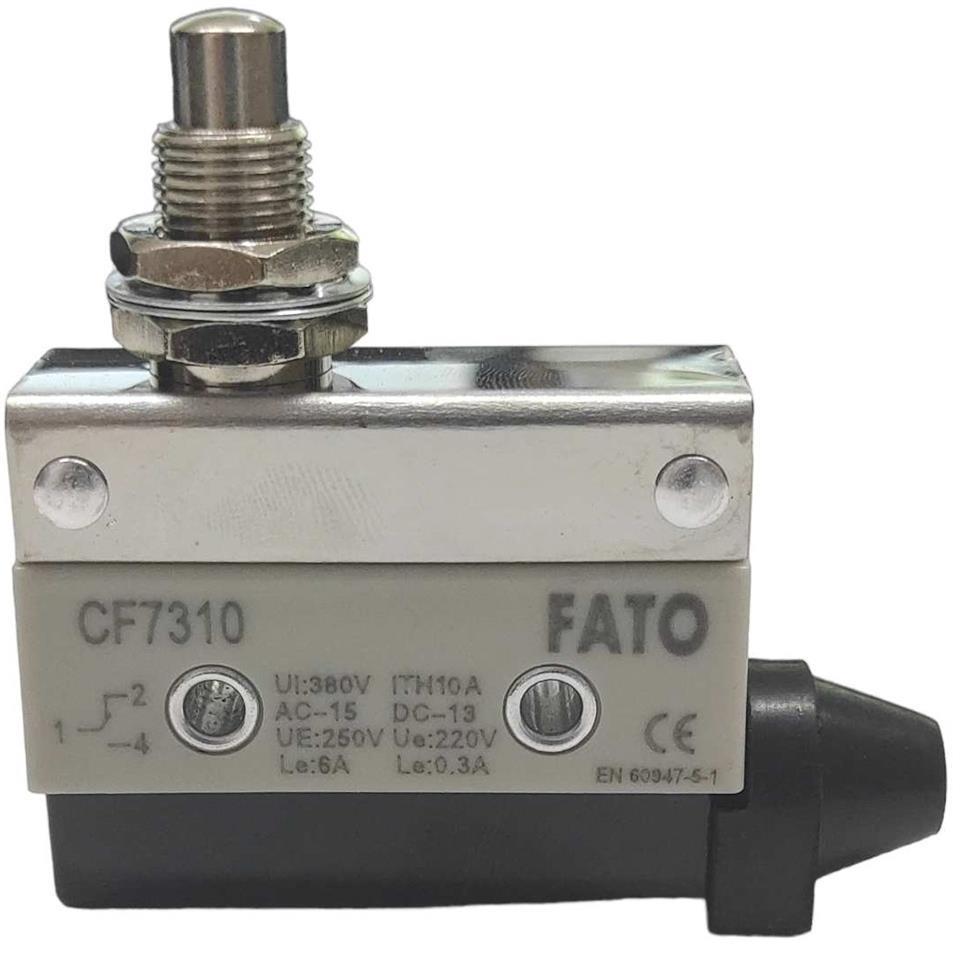

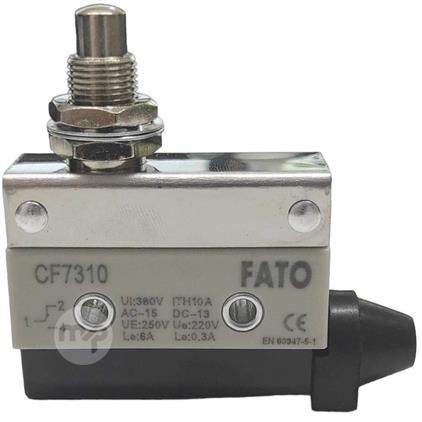

Horizontal limit switch with push button 250V 10A CF7310 Fato The limit switch is a small, very sensitive switch that requires minimal compression to activate. They are very common in household appliances and switch panels with small buttons. ... Because they are reliable and sensitive, micro switches are often used as a safety device. Technical features Contact configuration: 1NO1NC Actuator Action: Momentary (Auto Reset) Rated Voltage: 250V Rated current: 10A Terminal Type: Screw (3 Terminals) Button color: silver, black Button material: metal, plastic Contact resistance: <= 30mohm Insulation Resistance: >=100 Mohm (500V DC) Dielectric strength: 1500VAC 1 minute Operating temperature: -15 degrees Celsius - +80 degrees Celsius Used ambient humidity: < 95 percent RH Electrical life: >=1.0000 cycles Mechanical life: >=100,000 cycles
