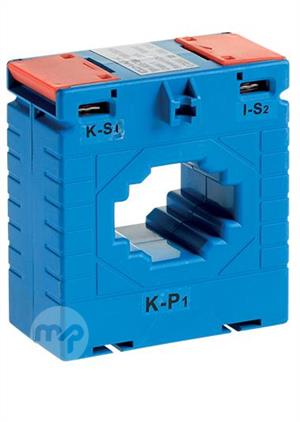

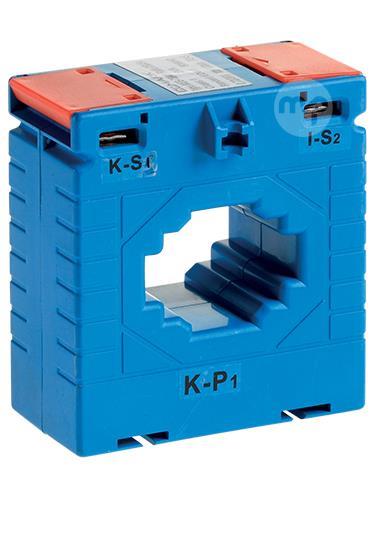

Current transformer MES-30 75/5 CLASS 0.5 Elmark
€ 18.95 + € 5.00 DELIVERY
Description
Current transformer MES-30 75/5 CLASS 0.5 Elmark Technical features Maximum operating voltage: 720V, 50Hz Acceptable operating current deviation: 1.2 х In Input Current: 50-1200A Output Current: 5A Surge wear resistance: 4000V, 50Hz (1min) Operating temperature: -5° to 65°С Humidity: 35-85% RH Accuracy class: 0.5 Mounting: vertically or horizontally to the feed rails depending on the transformer opening Standards: EN61010-1; EN60044-1; EN60044-6 Model: MES-75/30 Power: 1.5VA Output current: 5A Input current: 75A Accuracy class: 0.5 Brand: ELMARK EAN code: 3800131102805 Supplier code: 45075A NB: Colors may vary from those shown in the picture
