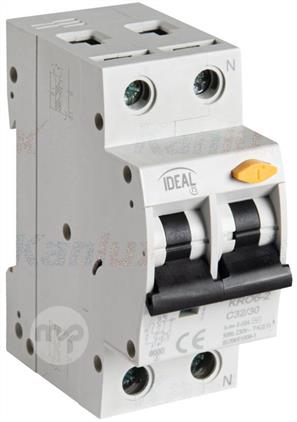

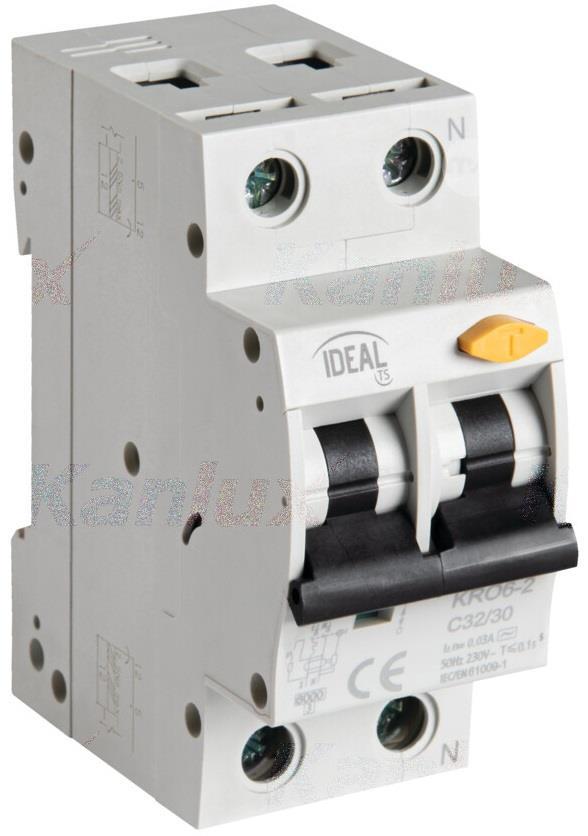

Differential magnetothermal switch 6kA 2P 25A Kanlux The differential magnetothermic switch has the function of interrupting the flow of energy when there is direct or indirect contact and there is a current leakage, or when an overload occurs. Conformity to: EN 61009 -1 Rated breaking capacity: 6kA according to EN60898-1 Basic information EAN code: 5905339232212 Supplier code: 23221 Model:   KRO6-2/C25/30 Brand: Ideal by Kanlux Weight and size Height [mm]   81 Width [mm]   35 Length [mm]   75 Weight   196g Technical data Rated voltage [V]   230 AC Rated frequency [Hz]   50 Rated current [A]   32 Rated differential current [mA]   30 Sections of the cables used [mm]   10÷16 Operating temperature [°C]   -25÷40 IP rating  20 Differential protection type   AC Rated short-circuit current [A] 6  000 Energy limitation class   3 property release   C 2  forms  Standard:   PN-EN 61009 -1
