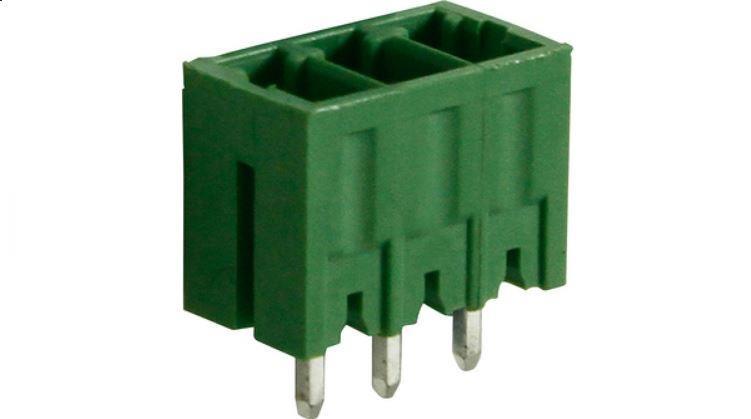

Male connector, 3 Poles, 3.5mm Pitch, 10A, 1.31mm², Straight   Mount type PCB - Through hole for printed circuit board  Genre Spina Step 3.5  mm Poli 3  Rated current 10 A Voltage rating 200  V Legend None  Approvals cUL Flammability UL 94 V-0  Operating temperature, min. - 33  ° C Operating temperature, max. 120  ° C Orientation  Straight Wire connection method Screw, clamp Max. AWG wire size 16  AWG AWG wire size min. 26  AWG Wire size mm2 max. 1.31  mm² Wire size mm2 min. 0.13  mm²   Ends closed Spines closed Polarized stamps Guided pin alignment Foot / Terminal Block - Tinned Phosphor Bronze Push-in Terminal- Brass with nickel-plated copper foil  Screw / Torque - M2 Tin Plated Steel, 0.3 Nm Recommended hole size on printed circuit board -  1.2 mm Manufacturer Part Number:  RND 205-00101
