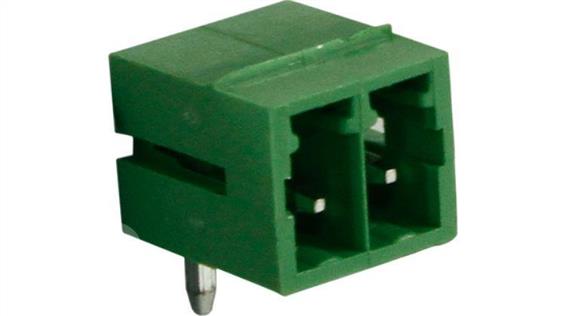

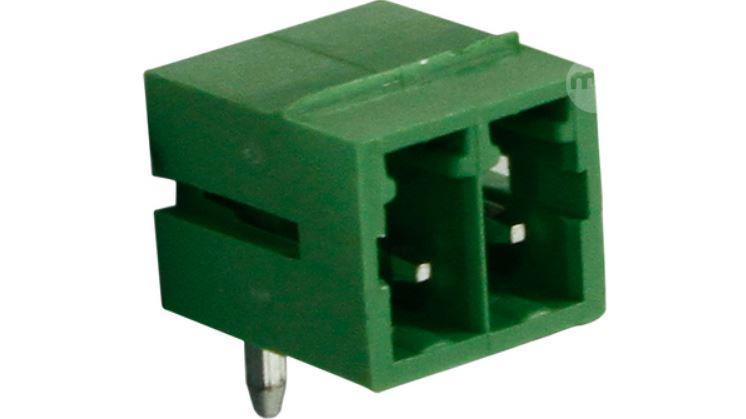

Male connector, 2 Poles, 3.5mm Pitch, 10A, 1.31mm², Right angle   Montage Type PCB - Through hole for printed circuit board  Genre Spina Step 3.5  mm Poli 2 Rated current 10  A Legend None  Approvals cUL Flammability UL 94 V-0  Operating temperature, min. - 33 ° C Operating temperature, max. 120 ° C  Orientation Right angle  Wire connection method Screw, clamp AWG wire size min. 26  AWG  Dim wire ensions mm2 max. 1.31 mm²   Ends closed Spines closed Polarized stamps Guided pin alignment Foot / terminal - Tinned phosphor bronze Push-in terminal - Brass with nickel-plated copper foil  Screw / torque - M2 Tin Plated Steel, 0.3 Nm Recommended dimensions for hole on printed circuit  1.2 mm   Manufacturer Part Number:  RND 205-00111
