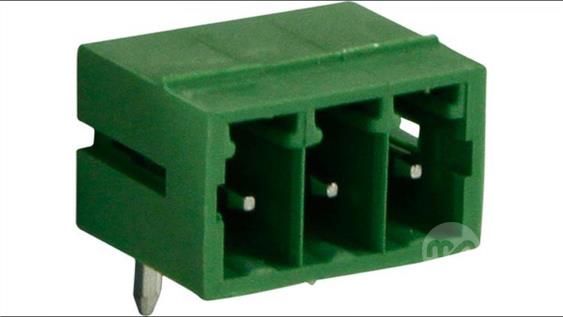

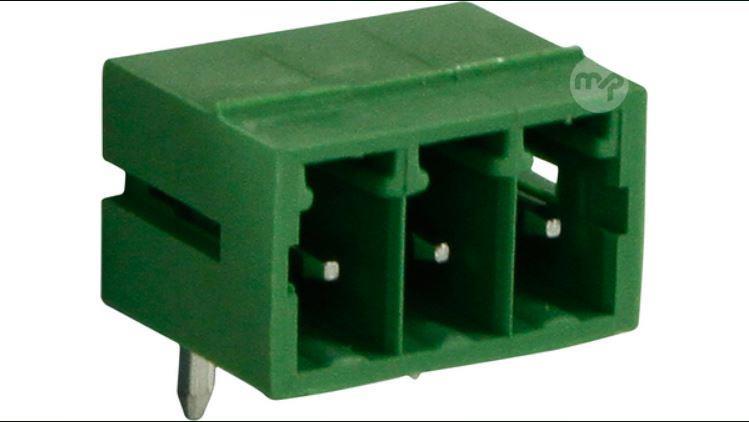

Male connector, 3 Poles, 3.5mm Pitch, 10A, 1.31mm², Right angle  Features PCB mounting type - Through hole for printed circuit board Genus Spina 3.5 mm pitch Poles 3 Rated current 10 A Rated voltage of 200 V Legend None CUL approvals UL 94 V-0 flammability Operating temperature, min. -33 ° C Operating temperature, max. 120 ° C Orientation Right angle Wire connection method Screw, clamp AWG wire size max. 16 AWG Wire size AWG min. 26 AWG Wire size mm2 max. 1.31 mm² Wire size mm2 min. 0.13 mm² Ends closed  Spines closed Polarized stampings  Pin alignment guided Foot / end piece - Tinned phosphor bronze Push-in clamp - Brass with nickel-plated copper foil Screw / torque - M2 Tin Plated Steel, 0.3 Nm Dimensions recommended for hole on printed circuit  1.2 mm Manufacturer Part Number: RND 205-00112
