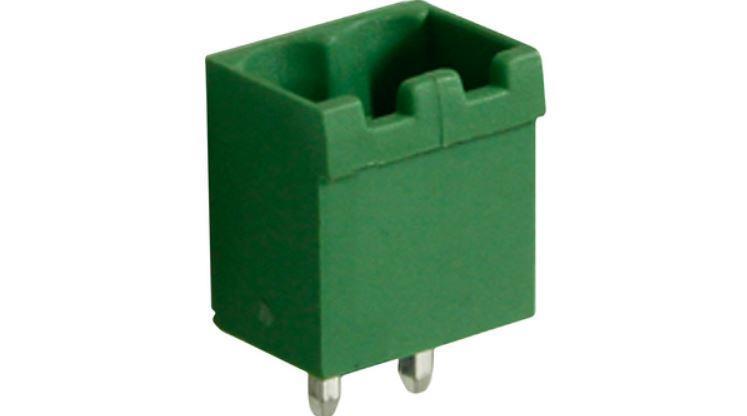

Male connector, 2 Poles, 5mm Pitch, 15A, 3.3mm², Straight   Mount type PCB - Through hole for printed circuit board Genre Spina Step 5  mm Poli 2 Rated current 15 A Legend None  Approvals UL Flammability UL 94 V-0 Operating temperature, min. - 33 ° C Operating temperature, max. 120 ° C  Orientation  Straight Wire connection method Screw, clamp AWG wire size max. 12  AWG AWG wire size min. 24  AWG  Dimensions cable mm2 max. 3.3  mm² Wire size mm2 min. 0.2 mm²   Closed ends Polarized stamps Guided Pin Alignment   Manufacturer Part Number:  RND 205-00221
