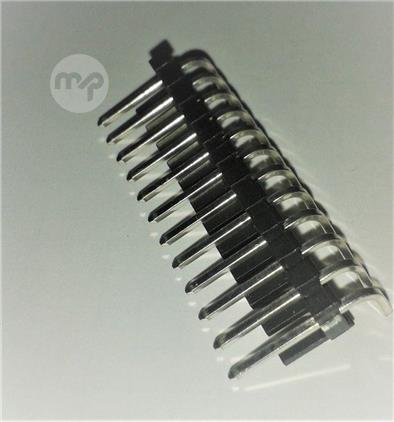

Molex connector 12 poles - pack of 10 pieces Brand: MOLEX P / N: 0026481124 Agency Certification: CSA LR19980 / UL E29179 General Product Family PCB Headers Series 41682 Application Power, Wire-to-Board Application Tooling Part Link 011201230 Product Name KK® Physical Breakaway Yes Circuits (Loaded) 12 Circuits (maximum) 12 Color - Resin Black Durability (mating cycles max) 25 Flammability 94V-0 Glow-Wire Compliant No Lock to Mating Part None Material - Metal Brass Material - Plating Mating Tin Material - Resin Polyester Number of Rows 1 Orientation Right Angle PC Tail Length 5.26mm (.207") PCB Locator No PCB Retention None PCB Thickness - Recommended 1.60mm (.063") Packaging Type Bag Pitch - Mating Interface 3.96mm (.156") Pitch - Termination Interface 3.96mm (.156") Polarized to Mating Part Yes Polarized to PCB Yes Shrouded Partial Stackable No Temperature Range - Operating 0°C to +75°C Termination Interface: Style Through Hole Electrical Current - Maximum per Contact 7A Voltage - Maximum 250V Solder Process Data Lead-free Process Capability Wave Capable (TH only) Material Info Old Part Number A-41682-A12A102
