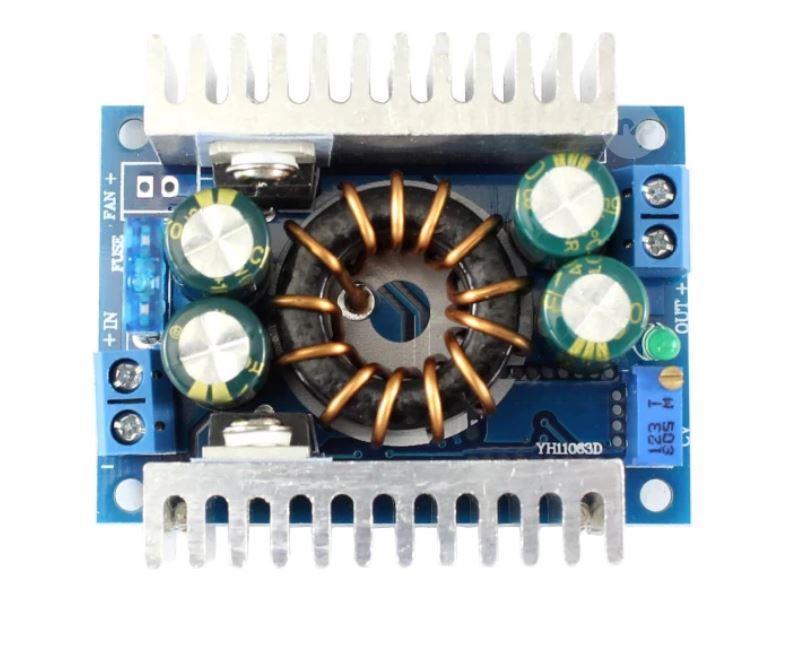

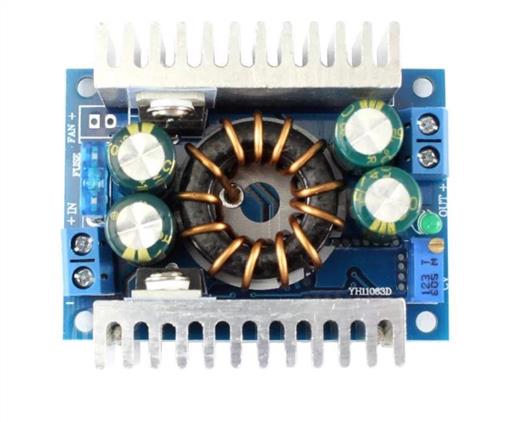

High power converter from DC 8-32V to 9-46V adjustable - 8A High power converter from DC 8-32V to 9-46V adjustable - 8A. For a DIY creation of a adjustable voltage regulator or to create a power supply for electronic equipment or to power the car or other devices. Features module properties: Not isolated module (Boost) minimum dropout voltage: 0 V input voltage: DC 10-32V (can change to DC 8-16V inp ut, please change the circuit on the back of the PCB, it is marked) output voltage: 10-46V. (If 8-16V input, output is 8-46V) input current: 16A Max. ( exceed 8A please increase the heat dissipation, heatsink not included) static operating current: 15mA (12V step up at 20 V. The higher the output voltage, the more the static current will increase) output current: 8A Max. ( exceed 4A please improve heat dissipation) output power: 90W (natural cooling), 150W (with dissipation increased) operating temperature: -40 ° C to + 85 ° C (increase heat dissipation if too hot ) frequen working za: 380 KHz conversion efficiency: up to 95% short circuit protection: Yes (15A fuse input) reverse protection of polarity: None (If you need to install input port diode) installation: 4x3mm screws  wiring: Clamps, do not need to solder. V-IN input, V-OUT output. format: 60mm (L) x 50mm (W) x 20mm (H)   reference 16V to 19V, output current 3A, 94% efficiency 12V to 20V, output current 5A, efficiency 89.5% 12V to 30V, output current 3A, efficiency 89.2% 24V to 42 V, 3A output current, 95.2% efficiency
