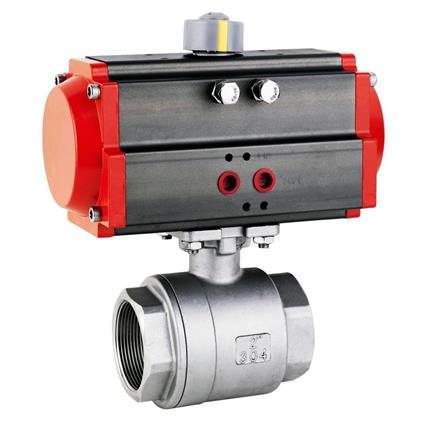

Ball valve 1 inch DN25 with pneumatic actuator AT40

Industrial valve for many applications. Powerful pneumatic actuator, the valve is made ​​of stainless steel.


There are other actuators and valves in many diameters performed by brass and stainless steel.
Valve characteristics:

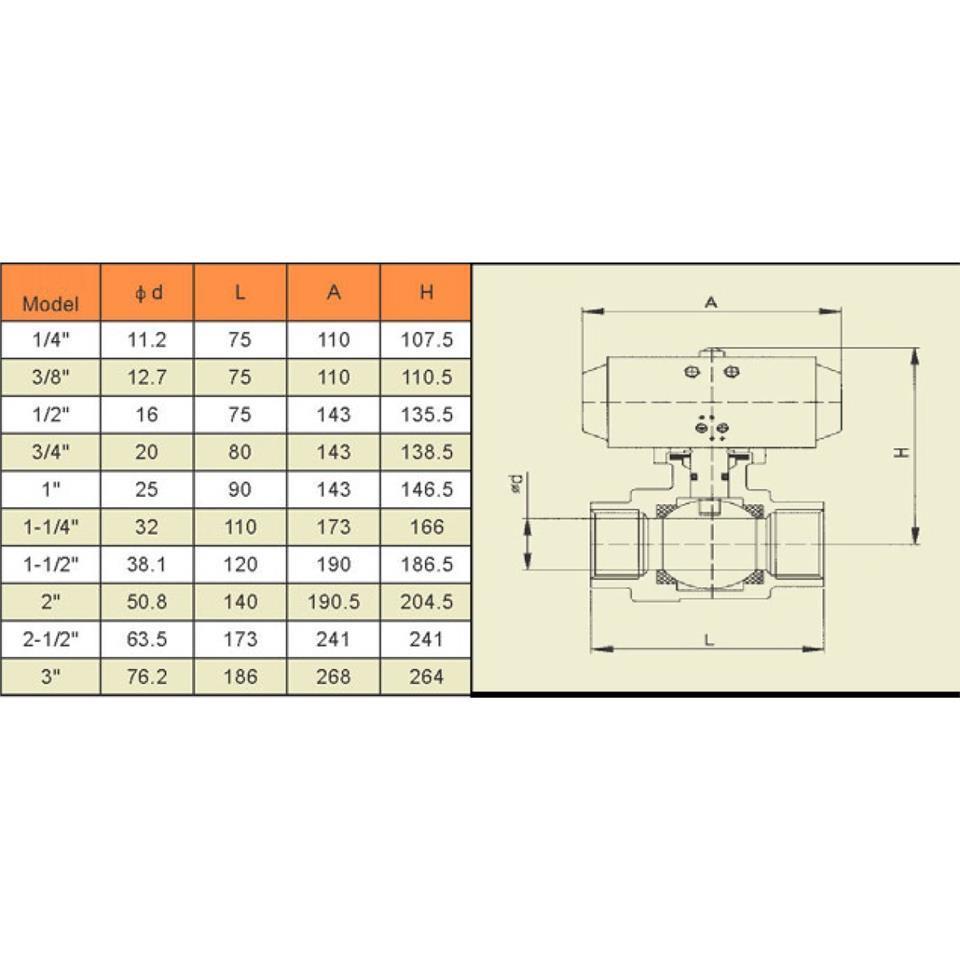

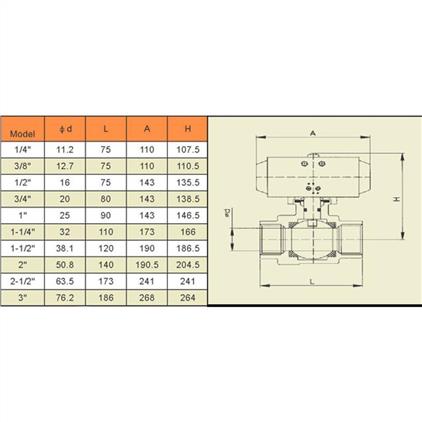

Size:1 inch DN25
Maximum throughput (simple flow without limitation)
Made entirely of stainless steel SS304
Any working position
Requires no maintenance
Resistant to chemicals, hot steam
Operating pressure 0-63 bar
Medium temperature -20 + 180 degrees
Features of the actuator:

Operating pressure 3-8 bar
Operating temperature -20 + 80C
Air connection G1/4 inch, the possibility of connecting the control valve type Namur (valve available separately)
Time of opening / closing instant (depending on the supply pressure and culverts)
Mechanical position indicator
Full waterproof - IP65
Maintenance - free operation
To actuator available is solenoid valve type 5/2.

Additionally in offer is available accessory like electrical position indicator.

AT valve pneumatically is the best solution in case you have compressed air and need a ball valve actuator. Real-time response, lack of damage in case of blockage of the valve, high strength, reliability and durability make it the best choice for many applications.

OTHER SIZES AND CONFIGURATIONS ALSO AVAILABLE.
