Description:

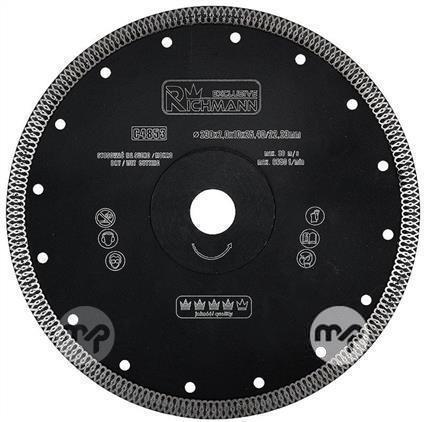

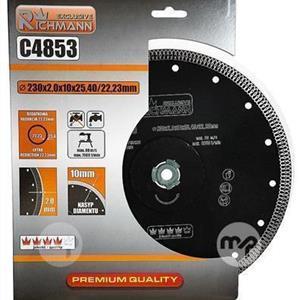

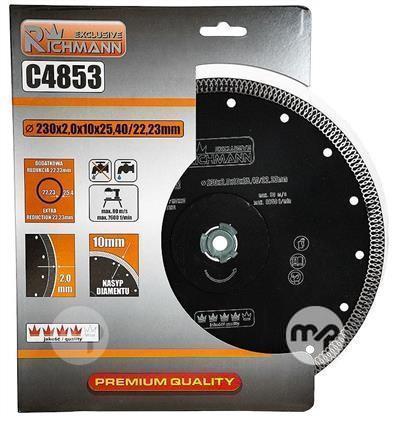

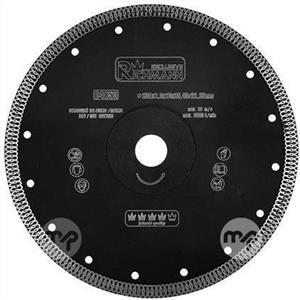

A thin diamond blade designed for cutting materials such as: clinker, tiles, porcelain tiles, marble, granite, tiles.
Designed for cutting material with an electric tile cutter.
The disc diameter is: 230mm, thickness: 2.0mm, bore: 22.23 / 25.4mm, diamond surface 10mm.
The specific profile of the diamond edge allows the hardest materials to be cut at high speed without compromising the quality of the finish.
Blade for straight cuts only, not recommended for mitering.
It has holes to support cooling during operation.
Hole reduction from 25.4 mm to 22.23 mm included.
For dry and wet cutting.
Premium quality.

TECHNICAL DATA:

For work: dry / wet
Disc diameter: 230 mm
Bore diameter: 25.4 / 22.23 mm
Disc thickness: 2.0 mm
Diamond surface: 10 mm
Max. rotation speed: 7600 rpm
Max. instantaneous speed at the edge of the outer disc: 80 m / s
Items included: 1 pc.
Weight: 581 g
Weight with packaging: 648 g
Dimensions of the package (height / width): 280/260 mm
