Condition
Used - like new

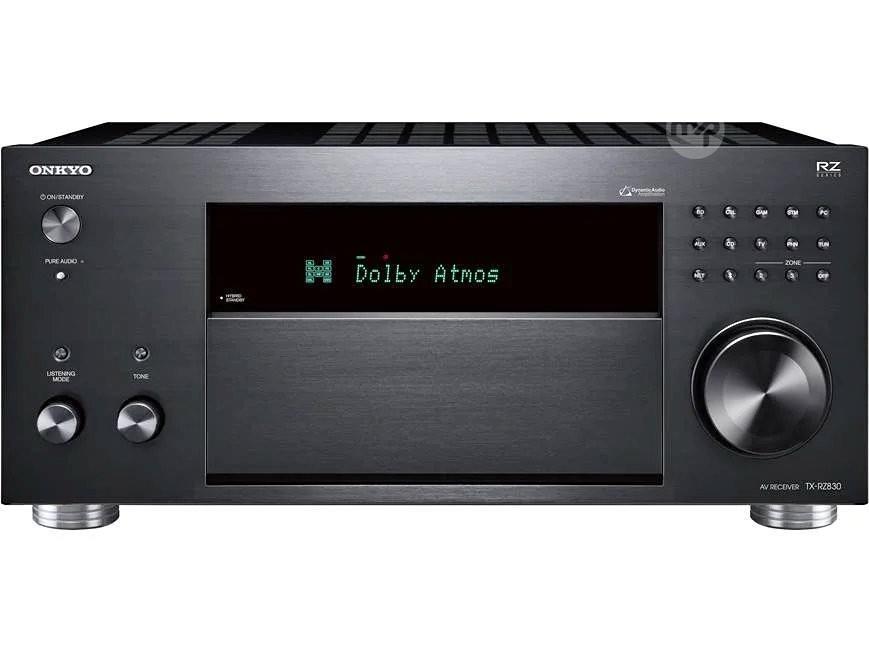

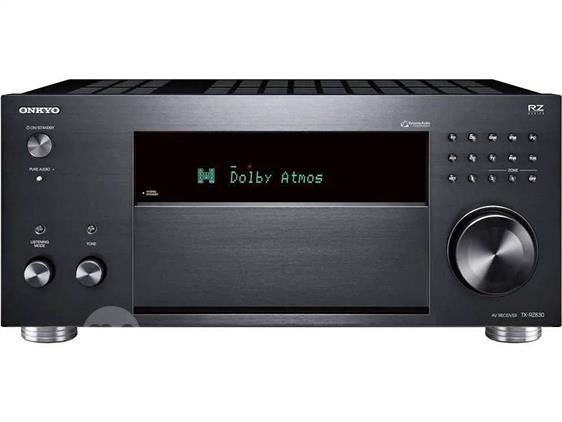

Enjoy UHD, HDR, and 3D support via HDMI with the Onkyo TX-RZ830 9.2-Channel Network A/V Receiver. It produces up to 120W of power per channel at 8 Ohms for room-filling sound. AccuEQ Advance sound calibration allows you to tailor the sound to your room's specific acoustics.

Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices, while built-in Wi-Fi connectivity provides access to your Spotify, TIDAL, and other online services. Chromecast built-in enables the receiver to be controlled with your voice with your
Google Assistant-enabled device. The TX-RZ830 is equipped with seven HDMI inputs and two HDMI outputs. One of the HDMI outputs supports ARC for the reproduction of TV-based audio, such as your TV's built-in apps.

Main Unit:

Channels
9.2
Power Output per Channel
120 W per channel (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven, FTC)
250 W per channel (6 Ohms, 1 kHz, 10% THD, 1-channel driven)
Dynamic Power per Channel
130 W (8 Ohms, front)
220 W (4 Ohms, front)
250 W (3 Ohms, front)
THD & Noise
0.08% (20 Hz to 20 kHz, half power)
Input Sensitivity and Impedance
200 mV/47 kOhms (Line)
3.5 mV/47 kOhms (Phono MM)
RCA Output Level and Impedance
Subwoofer Pre-Out, Rated: 1.0 V/470 Ohms
Zone Pre-Out, Rated: 1 V/2.3 kOhms
Zone Pre-/Line-Out, Rated: 1 V/200 mV/470 Ohms
Frequency Response
5 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode)
Tone Control
Bass: ±10 dB, 20 Hz
Treble: ±10 dB, 20 kHz
Signal-to-Noise Ratio
106 dB (line, IHF-A)
80 dB (phono, IHF-A)
Speaker Impedance
4 to 16 Ohms
Processing
Dolby
Dolby Atmos, Dolby TrueHD, Dolby Surround
DTS
DTS:X, DTS-HD Master Audio, DTS Neural:X
Video Section
Input Sensitivity/Output Level and Impedance
Component Y: 1.0 Vp-p/75 Ohms
Component B/R: 0.7 Vp-p/75 Ohms
Composite: 1.0 Vp-p/75 Ohms
Tuner Section
Tuning Frequency Range
FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz
FM/AM Preset Memory
40 stations
Connectivity
Wi-Fi
Dual-band 2.4 / 5 GHz
Bluetooth
Version: 4.1 + LE
Profiles: A2DP v1.2, AVRCP v1.3
AirPlay
Yes

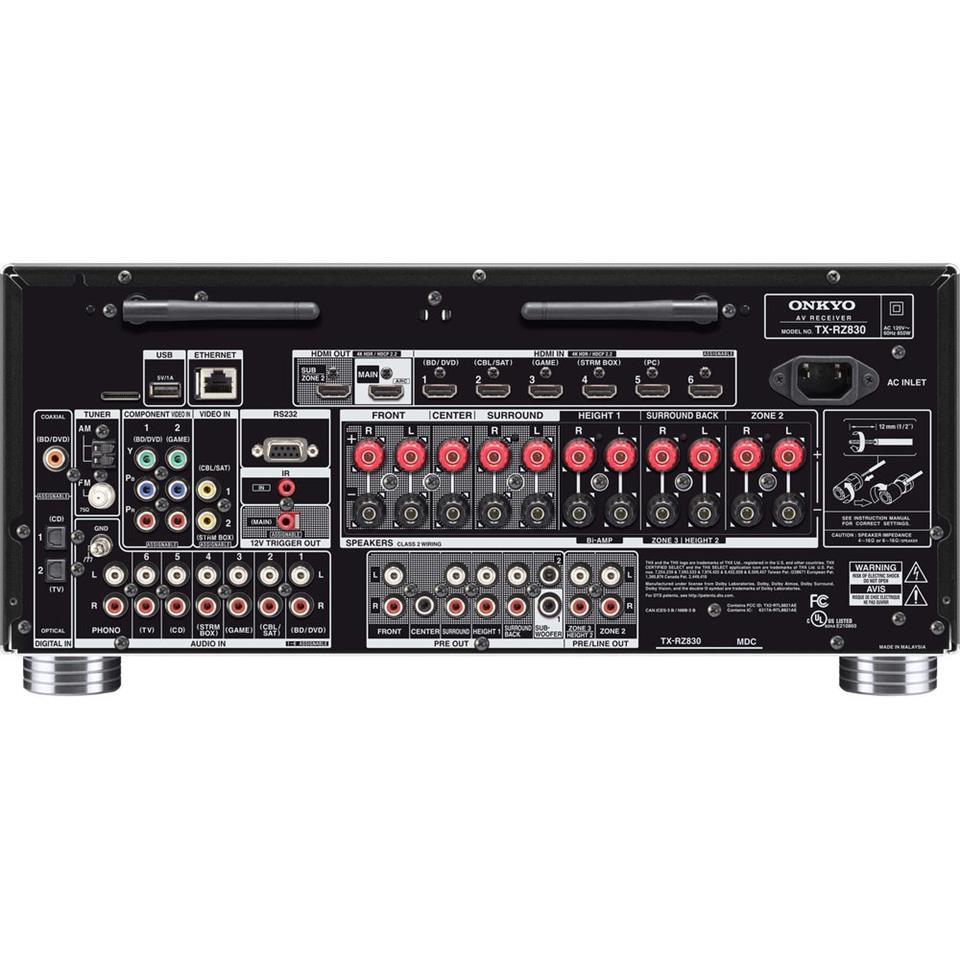

Inputs
7 x HDMI (1 front)
2 x RCA component video
2 x RCA composite video
2 x optical TOSLINK
1 x digital coaxial
6 x stereo RCA
1 x stereo RCA phono with ground screw
Outputs
2 x HDMI
1 x stereo RCA zone 2 pre-/line-out
1 x stereo RCA zone 3 / height 2 pre-/line-out
2 x subwoofer pre-out
1 x 1/4" / 6.35 mm headphone (front)
Other Interfaces
1 x RJ45 Ethernet LAN
1 x 1/8" / 3.5 mm setup mic in (front)
1 x 1/8" / 3.5 mm IR in
1 x RS-232 in
1 x 1/8" / 3.5 mm 12 V trigger out
1 x AM antenna
1 x FM antenna
1 x USB 5 V / 1 A
Speaker Connectors
11 x binding post pairs
General
Power Requirements
240 VAC, 60 Hz
Power Consumption
Typical: 870 W
On, No Sound: 70 W
Standby: 0.15 W
Dimensions
17.1 x 7.9 x 15.7" (435 x 201.5 x 398 mm)
Weight
30.9 lb (14 kg)
