DESCRIPTION

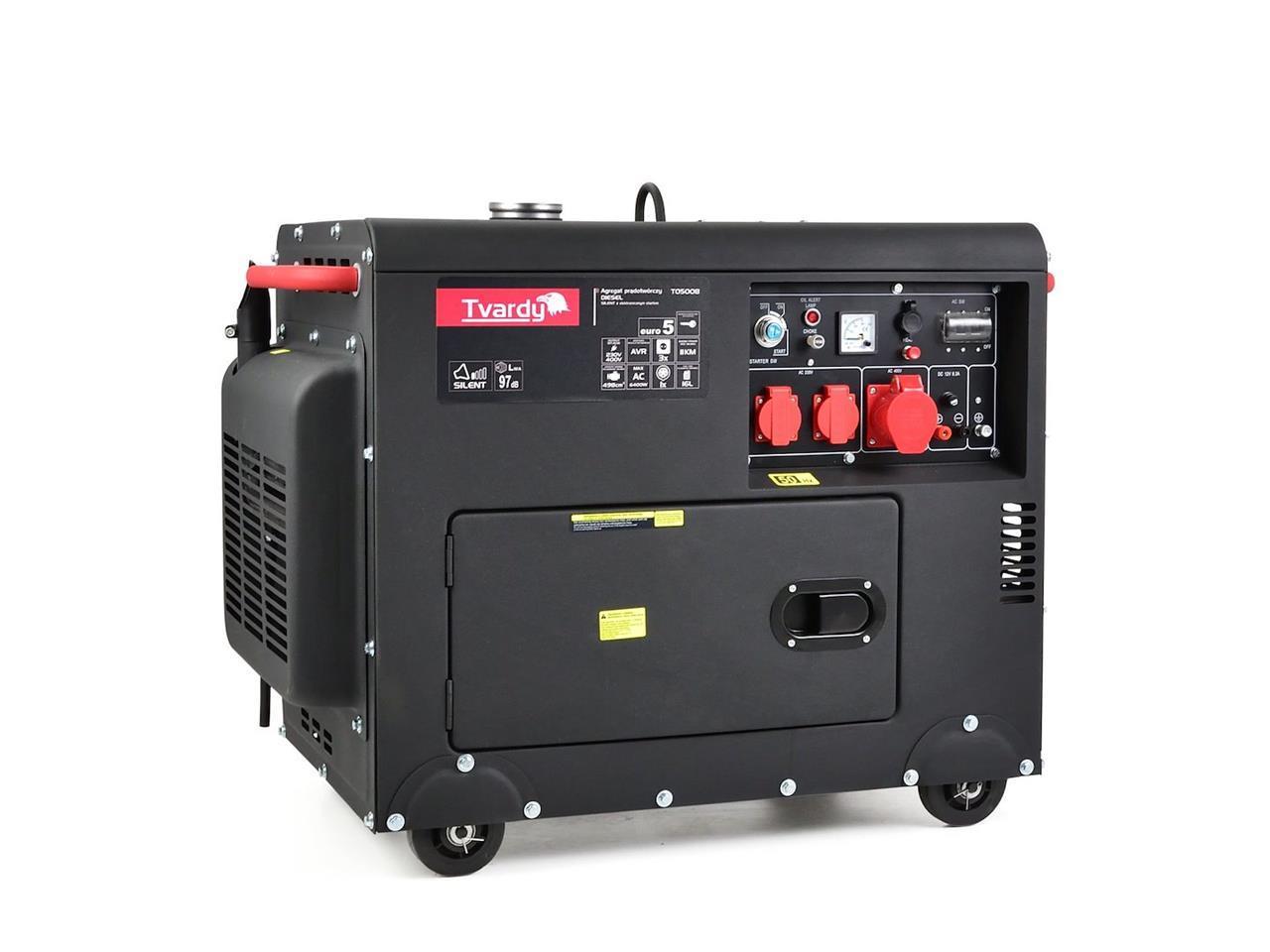

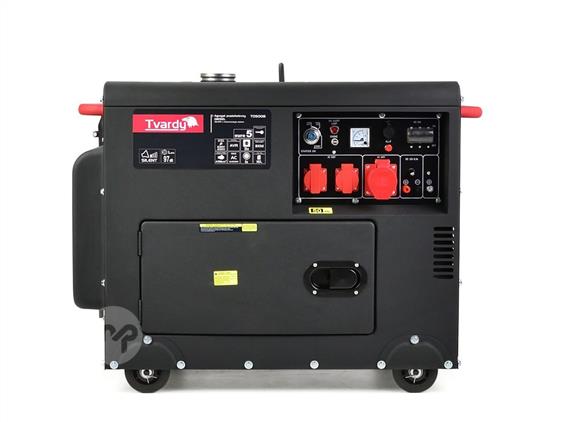

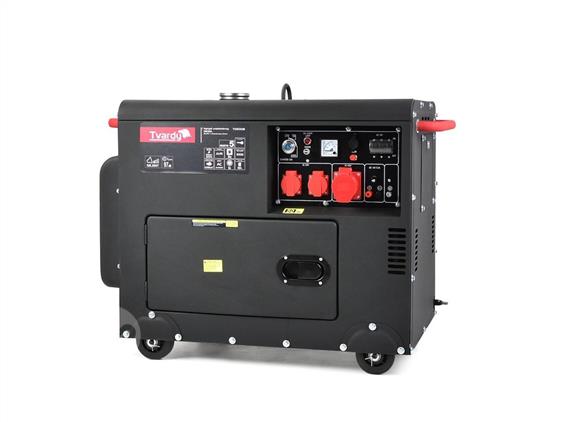

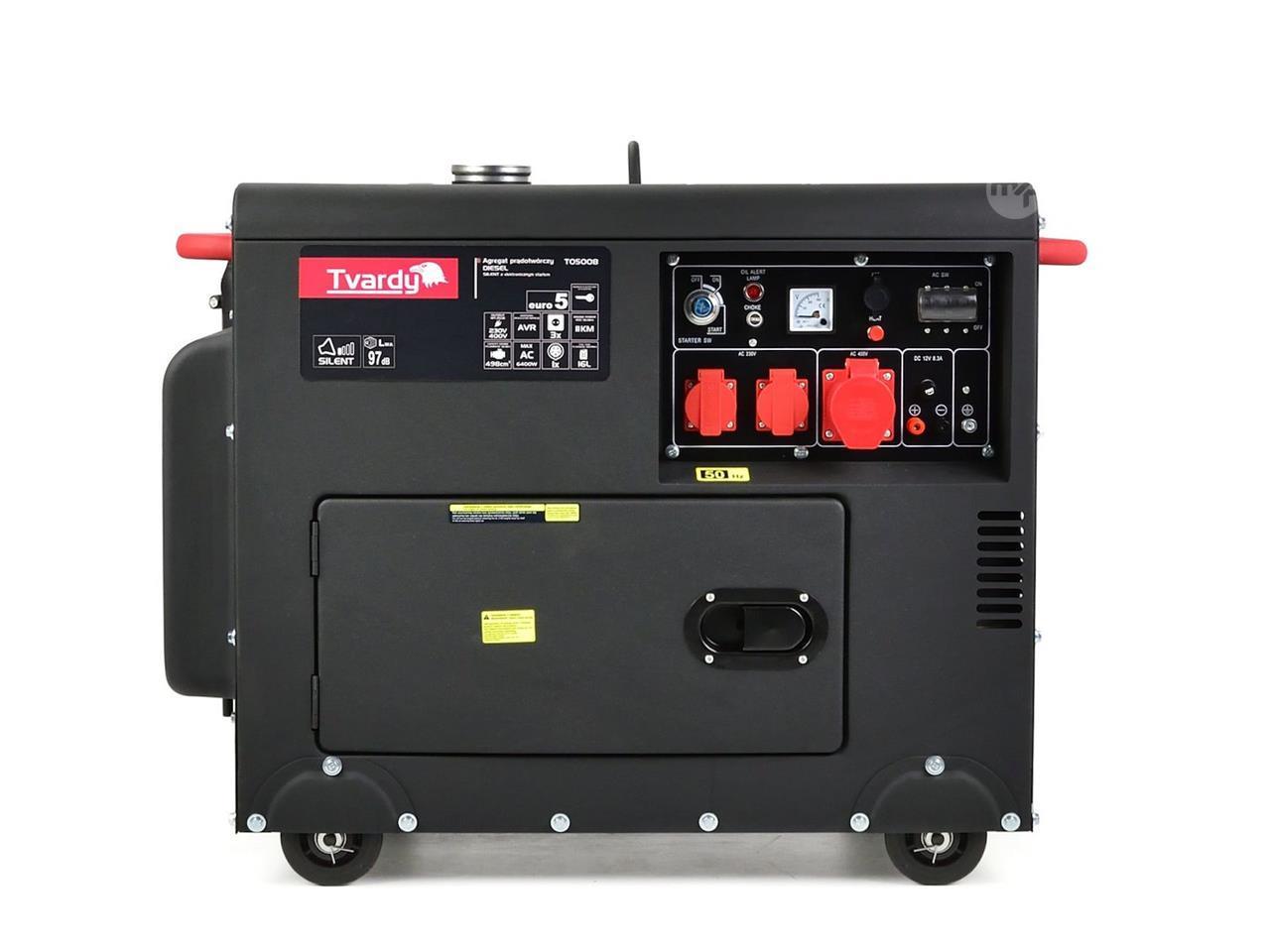

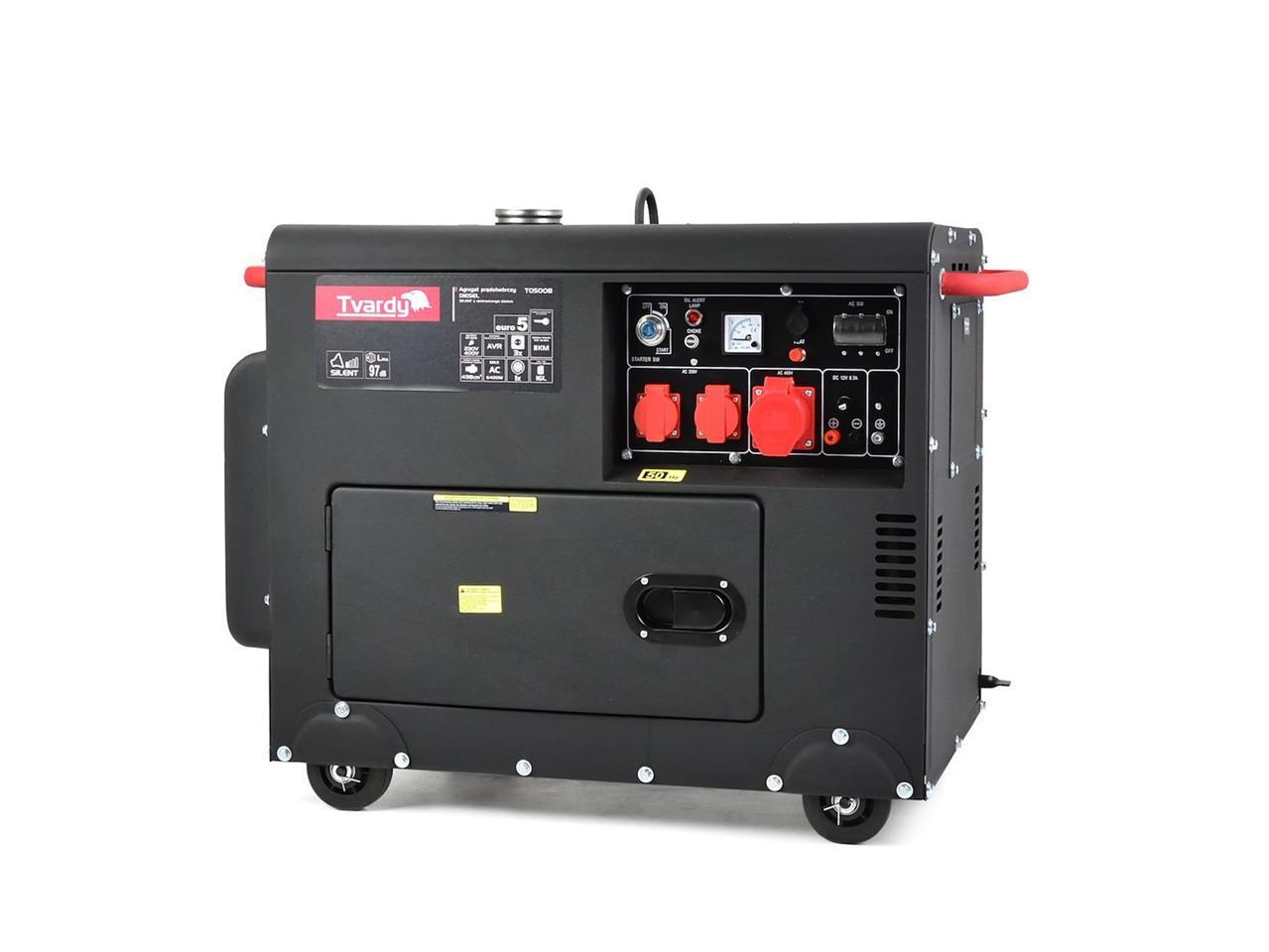

Professional Diesel Generator equipped with a high-pressure diesel engine with a capacity of 498cc and 11 HP. The generator's alternator has copper windings, allowing it to generate a peak power of 6000W. The continuous power the generator can handle is 5000W for the 400V socket and 2000W for each of the 230V sockets. The automatic voltage regulator (AVR) the device is equipped with, thanks to constant monitoring and immediate correction, maintains a constant output voltage, regardless of load and operating temperature. The 16-liter fuel tank allows for uninterrupted operation (at average load) for approximately 7.5 hours.


Product Characteristics:


Made using high-quality components and materials

High-quality automatic voltage regulator (AVR) maintains a constant voltage level, allowing the generator to be used as an emergency power source for household appliances such as refrigerators, stoves, lighting, etc.

A 11 HP engine provides a maximum power output of 6000W and a continuous power of 5500W

The alternator features copper windings

Under average load, the unit can operate for 7.5 hours on a single tank of fuel

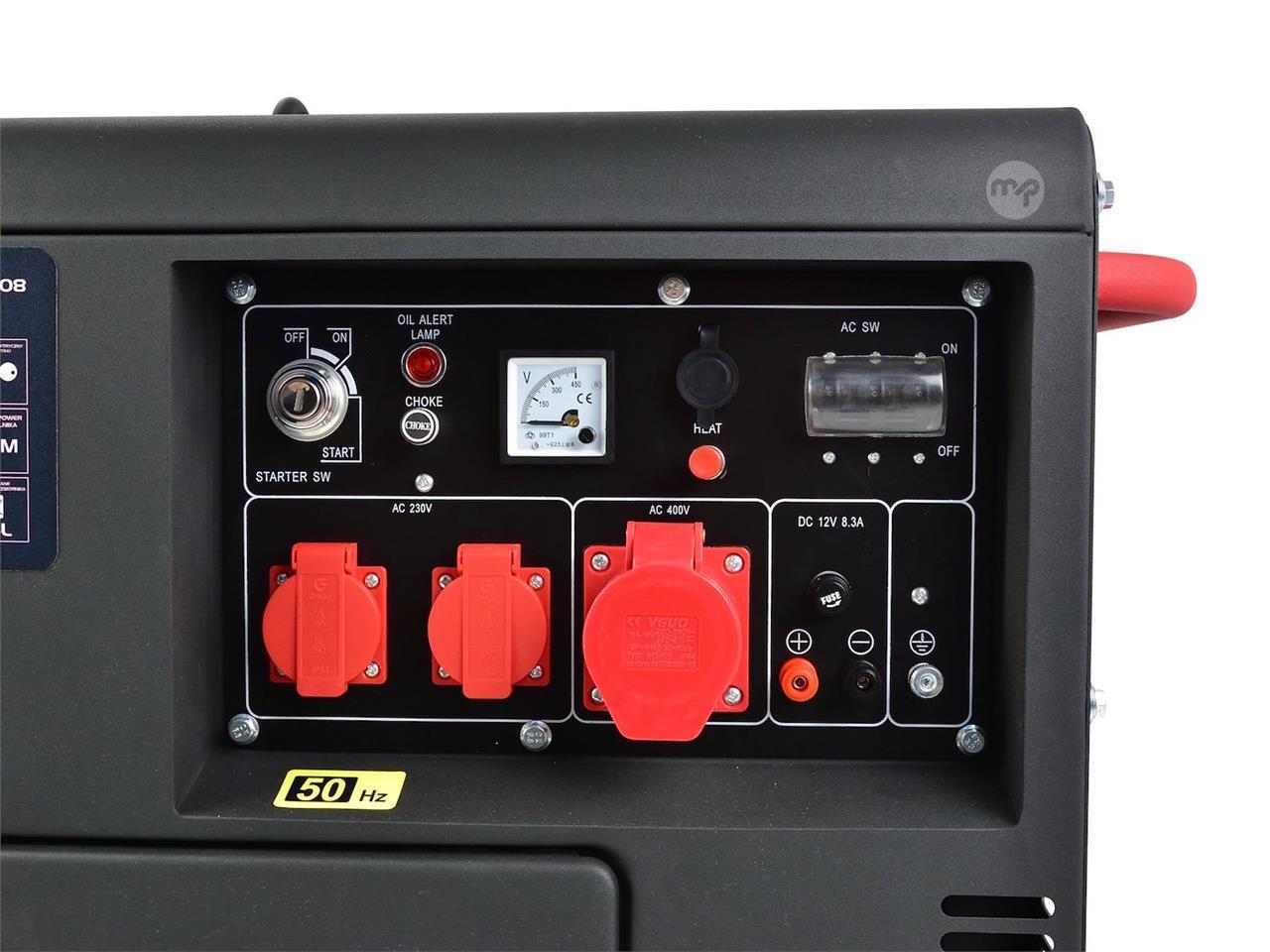

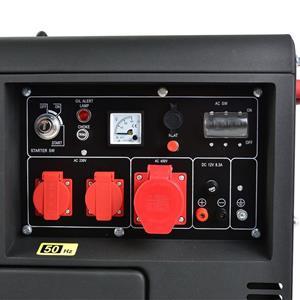

Equipped with 1 gniazdo 12V DC, 2 gniazda 230V oraz 1 gniazdo siłowe 400V

Electric start with a 30Ah battery

Quiet operation is ensured by a well-matched muffler and very well-insulated housing (77 dB / 97 dB)

16-liter fuel tank equipped with a fuel level indicator

Significantly more fuel-efficient compared to petrol generators

Easy access to engine components

Technical Specification:


Model: HP6700LN

Engine Type: Single-cylinder, 4-stroke, air-cooled diesel engine

Displacement: 498 cm3

Rotation Speed: 3000 rpm

Number of Cylinders: 1

Cooling System: Fan

Alternator: Copper

Engine Power: 11.0 HP

Rated Power / Max Power 230V: 2.0 kW / 4.4 kW

Rated Power / Max Power 400V: 5.5 kW / 6 kW

Power Factor cos?: 1.0

Voltage Regulator: AVR

Start Type: Electric with a 30Ah battery

Generator Type: 3-phase, max 6.4 kW

Rated Voltage: 230V / 400V

Frequency: 50 Hz

Sockets: 2 x 230 V, 1x 400V, 1x 12V DC 8A

ATS Input: Yes

Fuel Heater: Yes

Fuel Type: Diesel

Fuel Tank Capacity: 16 L

Fuel Consumption*: 2.5 liters / hour

Operating Time at 50% Load: 7.5 hours

Engine Oil: 15W40

Oil Pan Capacity: 1.7 L

Max Operating Height above Sea Level: 1000 m

Protection Class: IP23M

Noise Level: LPA(7m) / LWA, dB 77 / 97; According to Directives 2000/14/EC,

2005/88/EC

Net Weight: 148.0 kg

Length x Width x Height: 920 x 525 x 730mm

Packaging Dimensions: 940 x 540 x 765mm
