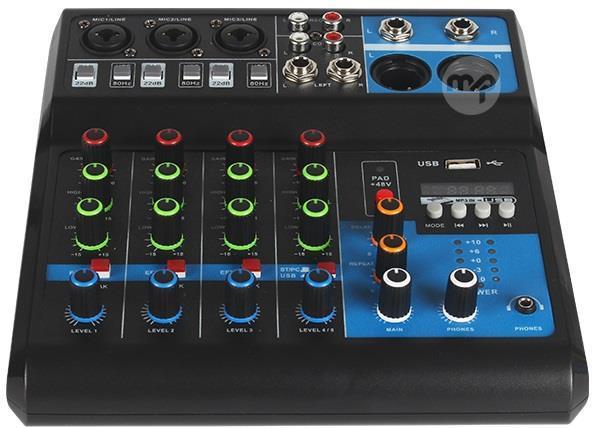

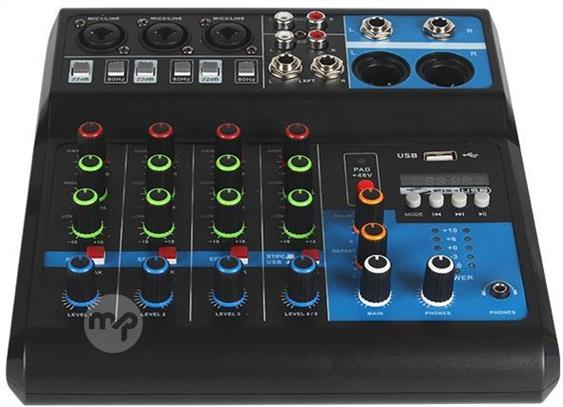

Professional mixer 5 channels Bluetooth/USB/Stereo RCA inputs

Model: F-5A
5-channel mixer with three stereo channels and one set of independent stereo source channels.
All microphone inputs adopt an independent low-noise microphone preamplifier.
1/4" stereo jack and balance control to equalize all stereo channels.
Stereo output for recording applications.
Freely adjustable 3-channel EQ for all five channels
Built-in 48V phantom power for condenser microphones.
Integrated effects processor
PAD switch for mono type inputs
HPF switch

Microphone input
Frequency Response: 10Hz - 200kHz
Range Gain: +14dB - +60dB
SNR: 120dB EIN


Line inputs
Frequency Response: 10Hz - 130kHz
Range Gain: -6dB - +38dB
SNR: 95dB EIN

stereo channels
Frequency Response: 10Hz - 70kHz
Range Gain: line -8 +15dB / microphones: +13 - +60dB
SNR: line 90dB EIN / microphone: 104dB EIN
equalization
LOW: 50Hz, +/-15dB
MID: 700Hz, +/-15dB
HIGH: 10kHz, +/-15dB
Diet

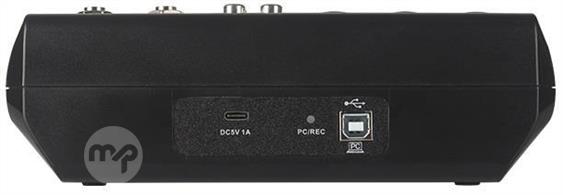

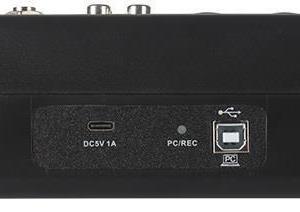

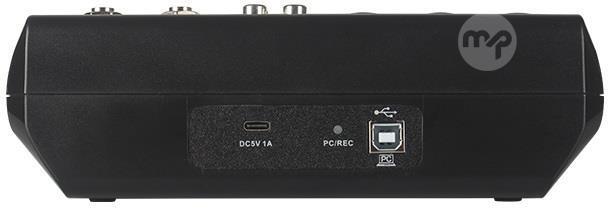

DC 5V/1A, via USB type C cable and power adapter (included)

Included in the package
USB Type C Power Cable
DC 5V power supply
USB cable for PC connection
Manual in English
