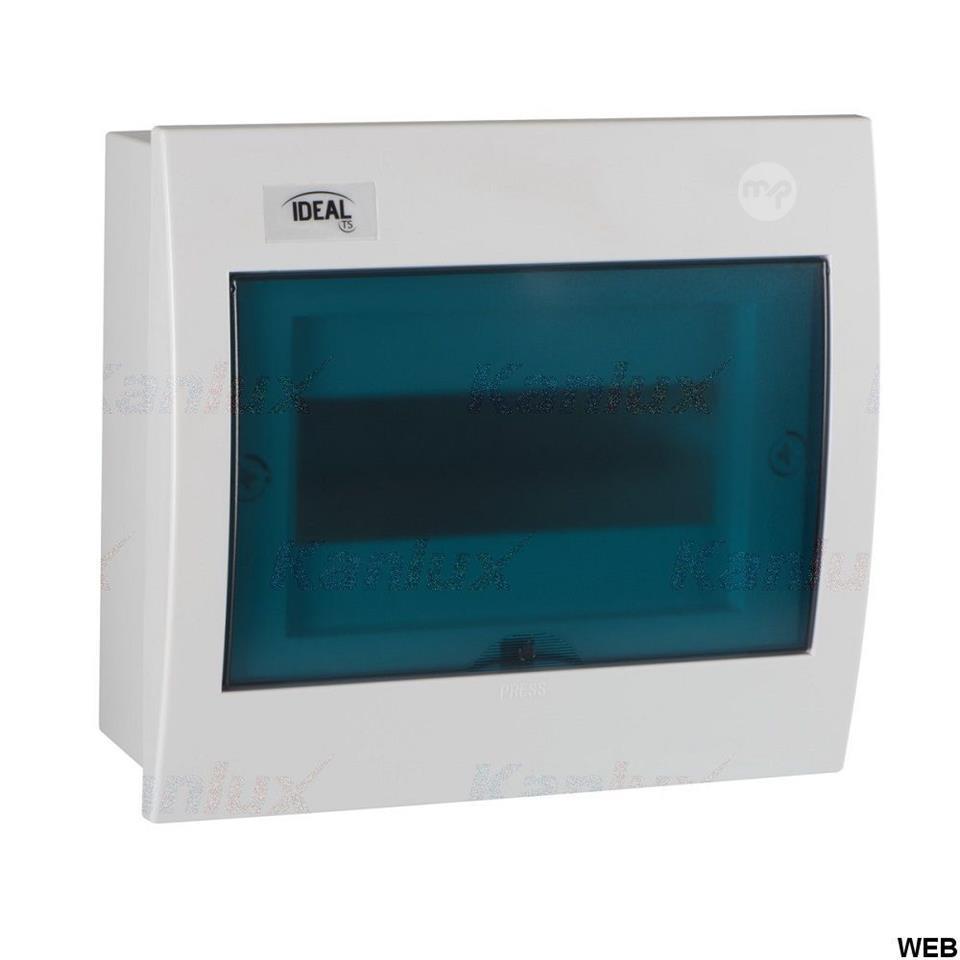

KDB 8 Kanlux modules flush-mounted distribution board
KDB series electrical panels that meet the requirement of heat resistance with a temperature of 650° C can only be used on non-combustible surfaces (for example solid walls made of non-flammable materials).
They cannot be applied on flammable surfaces (for example plasterboard, wood), on so-called "hollow walls" or on technical shafts.



Basic information
EAN13: 5905339236173
Vendor code: 23617
Color: white / light blue
Material: plastic material

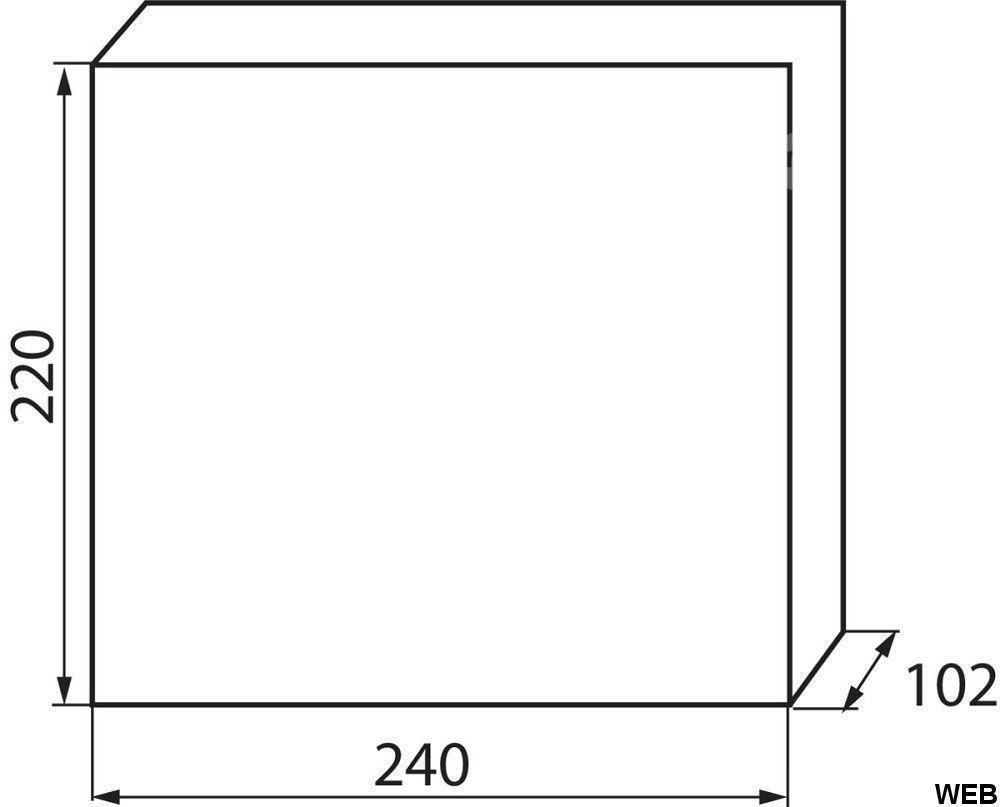

Weight and dimensions
Height [ mm]: 220
Width [mm]: 102
Length [mm]: 240
Weight: 580g

Technical data
Rated voltage [V]: 230/400 AC
Nominal frequency [Hz]: 50/60
Color: white / light blue
Rated current [A]: 63
Modules: 8P
Door color: light blue
Mounting location: for flush mounting in the wall
IP grade 30
temperature resistance [°]: 650
IK Grade 07
Degree of protection against electric shock: II
file number: 1
Standards: PN-EN 62208
