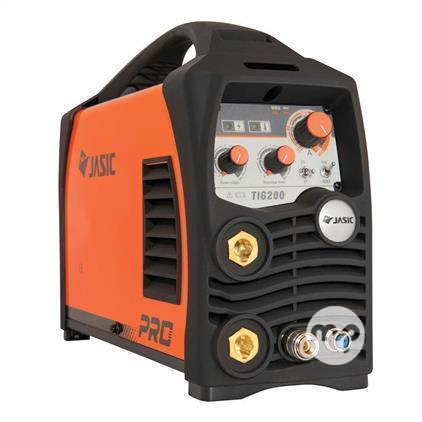

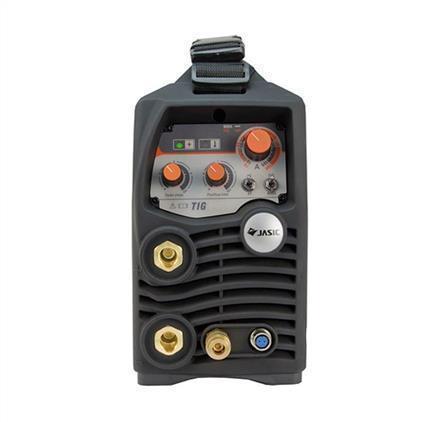

Jasic TIG 200 230V DC Inverter Package includes power source, TIG torch and adaptor, work return lead & clamp Key Features ■ IGBT Inverter technology - for the professional user ■ DC TIG/MMA ■ Hot start, HF arc ignition, 2T/4T ■ Down slope & post flow ■ High frequency inverter, high efficiency ■ Compact size, lightweight and modern design ■ Heavy duty 35-50mm dinse sockets ■ Easy start, stable and reliable arc ■ Auto-compensation for voltage fluctuation ■ Advanced single PCB construction ■ Generator friendly** Technical Data Input Voltage AC 230V - 50/60 Hz Ieff(A) 18.9 Input Power (kVA) 8.2 Current Range (A) TIG 10 - 200 MMA 10 - 180 Duty Cycle @ 40°C 200A @ 35% No-Load Voltage (V) 65 Efficiency (%) 85 Power Factor 0.7 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 365 x 135 x 277 Weight (Kg) 6.12

FREE SERVICE EVERY 6 MONTHS FOR 5 YEARS

5 YEARS GUARANTEE

Prices vat included

For Free delivery in malta minimum order is Eu 50.00
BILLY ENGINEERS 44 CROSS ROAD MARSA
