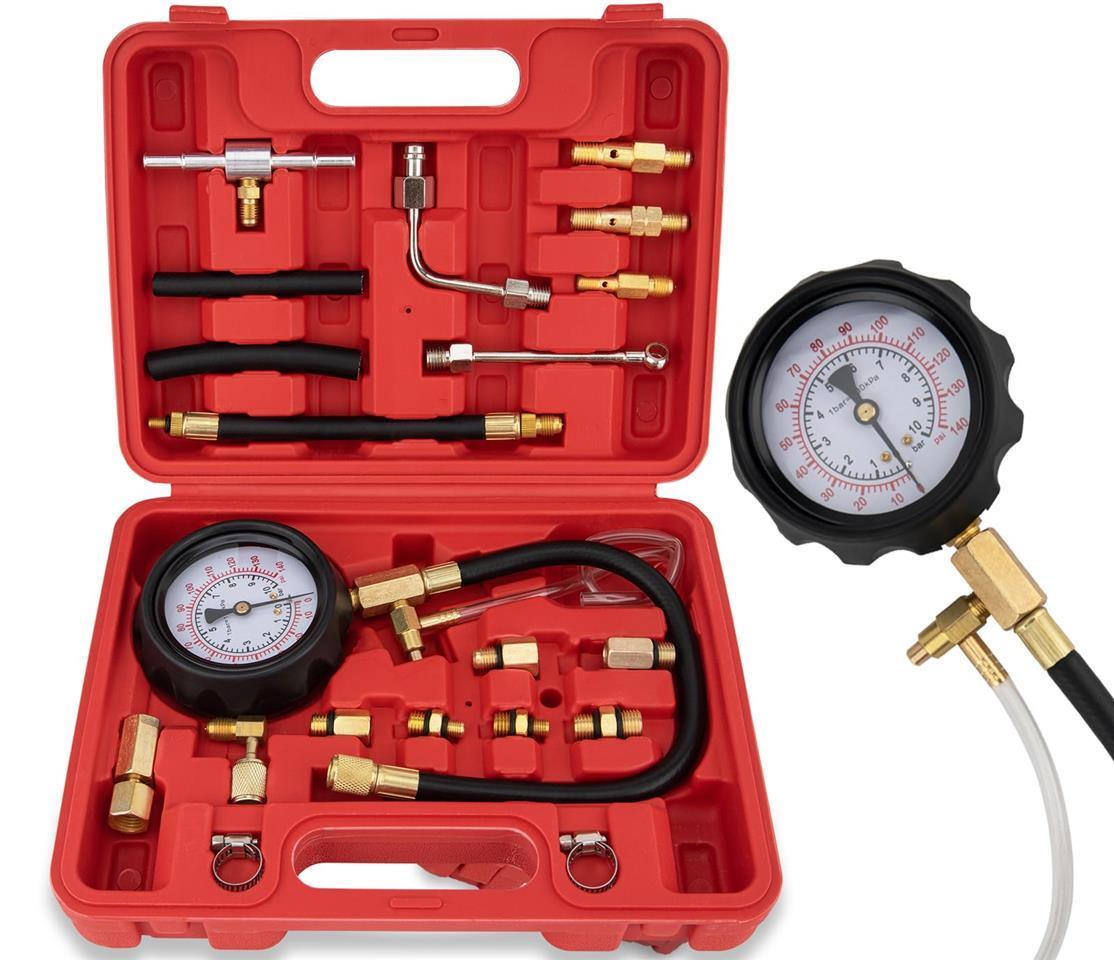

Package List

1x 3-1/2" big dial pressure gauge

1x 14"L long hose with 1/4" Female brass parts

1x 8"L short hose with 1/4" Male x M6 brass parts

13x Brass parts

2x Hose clamps

1x T type parts (Aluminium tee parts 1/4" & 3/8" barbed x 1/8"-24NPT & brass parts 1/8"-27NPT x 1/4"-18NPT)

1x Hose (1/4" x 3-1/2"L)

1x Hose (3/8" x 3-1/2"L)

1x Instruction manual

1x Red storage box

Features

1.Double scale reading, convenient and accurate reading; 2.Measuring range 0-140psi (0-10bar); 3.The plastic material tool box makes the placement of parts organized and easy to carry; 4.Made of high-quality materials (brass,aluminum,rubber,plastic), strong and durable; 5.Multiple size adapters for added applicability; 6.Applicable to cars and trucks and most vehicles (not diesel vehicles).

2 Types Connection Methods are Available

1.Use 14" hose/ 8" hose and M8/ M10/ M12/ M14 adapters to connect pressure gauge directly to fuel pump's standard Schrader /M6 /M8/ M10/ M12/ M14 fuel pressure test port; 2.Use T type parts insert in-line between the fuel pump and engine for most other vehicles.

Fitting size

1#Adapter: M14x1.5//M12x1.5

2#Adapter:7/16-20 UNF//7/16-20 UNF

3#Adapter: M12x1.5//M8x1

4#Adapter: M12x1.5//M8x1

5#Adapter: M12x1.5//M8x1

6#Adapter: M14x1.5//M12x1.5

7#Adapter: M12x1.5//M10x1

8# Adapter: M12x1.5//7/16-20 UNF

9#Adapter: Size 10~16

10#Adapter: M8x1mm//7/16-20 UNF

11#Adapter: M12x1.5//7/16-20 UNF

12# Adapter: M12x1.25//7/16-20 UNF

13#Adapter:M8X1&//7/16-20 UNF

14#Adapter: Size 6

15#Adapter: Size 8

16#Adapter:7/16-20 UNF

17#Adapter: Straight rod M12x1.5

18#Adapter: M14x1.5 / M12x1.5 bending bar

Features & details
Gasoline Pump Pressure Check -- Fuel pressure test kit is used for complete fuel system inspection and fault diagnosis of fuel supply and injection pump pressures. The gauge reading will help diagnose the inlet/outlet side assembly, detect the fuel pump or fuel pressure regulator, and low tank pressure for kink/leak/blockage.NOTE：Gasoline is highly flammable, please ensure no open flames nearby and operate by professional.
Widely Used -- Fuel pump pressure tester kit is fit for most gas engine cars, trucks motorcycles,ATVs,SUVs. 0-140PSI Fuel Injection Pump Pressure Tester Gauge Kit checks the gasoline pupm for most vechicles equipped with fuel injection (except Cis-Jetronic,Bosch and GM body systems).Because the scale range of the gauge is only 140PSI low pressure range, the tester is not suitable for diesel high pressure fuel injection pump, and high pressure fuel rail of direct injection engine.
Fuel Pump Tester Gauge -- Rubber and clear plastic protective case with shockproof protection and durable. Dual scale dial for easy reading, calibrated from 0-140 psi (0-10 bar) for accurate readings and high accuracy. Pressure gauges can easily maintain pressure values.
High Quality Materials for Enhanced Accessory Durability -- Fuel pressure test kit adaptor, made of high quality brass and aluminum, is oil resistant, corrosion resistant, rust resistant, reusable and reliable. Multiple sizes for increased applicability. Hose is made of reinforced rubber nylon resin to withstand easily torsion, temperature and pressure.
