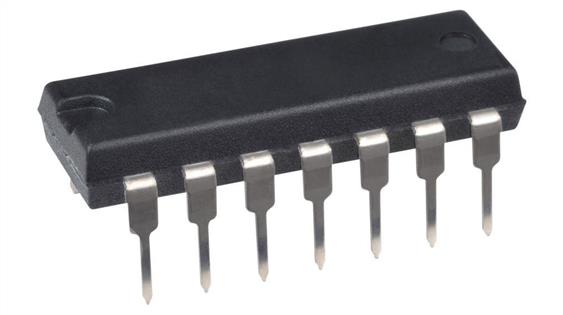

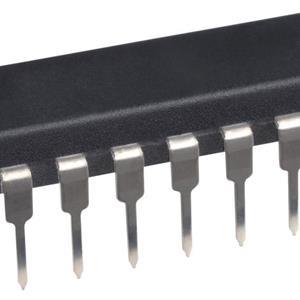

High Speed CMOS Logic Hex Buffers - GD74HC367 High-Speed CMOS Logic Hex Buffer/Line Driver, Three-State Non-Inverting and Inverting Buffered Inputs High Current Bus Driver Outputs Two Independent Three-State Enable Controls Typical Propagation Delay tPLH,tPHL = 8ns at VCC =5V, CL = 15pF, TA = 25°C Fanout (Over Temperature Range) Standard Outputs...10 LSTTL Loads Bus Driver Outputs...15 LSTTL Loads Wide Operating Temperature Range... –55°C to 125°C Balanced Propagation Delay and Transition Times Significant Power Reduction Compared to LSTTL Logic ICs HC Types 2V to 6V Operation High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V HCT Types 4.5V to 5.5V Operation Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min) CMOS Input Compatibility, I1 1µA at VOL, VOH
