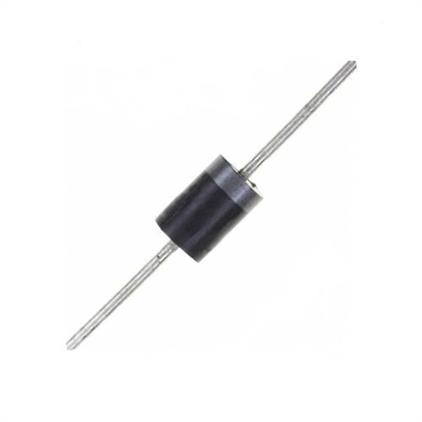

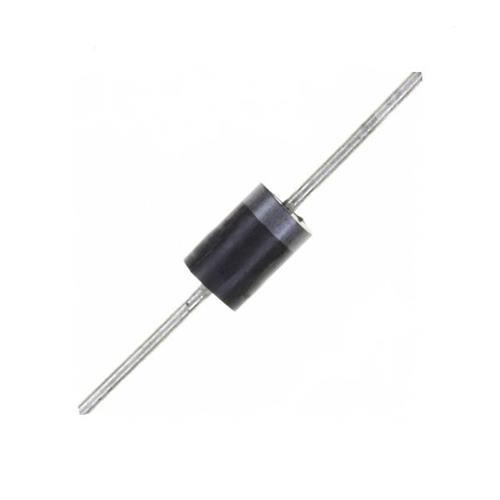

Rectifier diode 1N5408 MIC Brand: Master Instrument Corporation (MIC) Characteristics Maximum Repetitive Peak Reverse Voltage VRRM 1000 Volts Maximum RMS Voltage VRMS 700 VoltV Maximum DC Blocking Voltage VDC 1000 Volts Maximum Average Forward Rectified Current 0.375”(9.5mm) lead length at TA= 75? ON(OFF) 3.0 Amps Peak Forward Surge Current 8.3mS single half sine wave superimposed on rated load (JEDEC method) IFSM 200 Amps Maximum Instantaneous Forward Voltage @ 3.0A VF 1.0 Volts Maximum DC Reverse Current at Rated DC Blocking Voltage per element TA = 25? I R 5.0 µA TA = 150? 500 Maximum Full Load Reverse Current, full cycle average 0.375”(9.5mm)lead length at TL=75? IR(OFF) 500 µA Typical Junction Capacitance (Note 1) CJ 40 pF Typical Thermal Resistance (Note 2) RθJA 30 °C/ W Operating Junction Temperature Range TJ -55 to +150 °C Storage Temperature Range TSTG -55 to +150 °C
