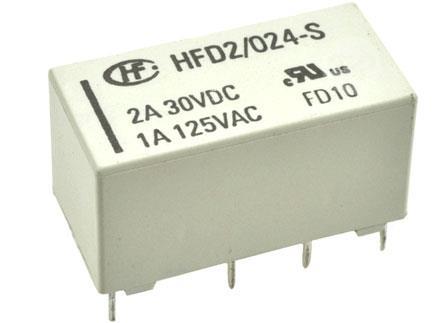

Producer HONGFA RELAY Relay type electromagnetic Contact configuration DPDT Rated coil voltage 24V DC Load capacity DC @R (with resistance load) 1A / 125VAC Load capacity DC @R (with resistance load) 3A / 30VDC Maximum current per contact 3A Commutative voltage max 250V AC, max 220V DC Relay version bistable, subminiaturized Editing PCB Coil resistance 3.84kÎ © Minimum coil tension 19.2V DC Max. coil tension 55.4V DC intervention time 4.5ms External dimensions 20.2 x 10.2 x 10.6mm release time 4.5ms Coil power absorption 150mW Working temperature - 40 ... 85 ° C Contact resistance 100mÎ © Contact material AgPd / Au 0.2μm Spacing of the derivations 5.08mm Characteristics of the relays two coils
