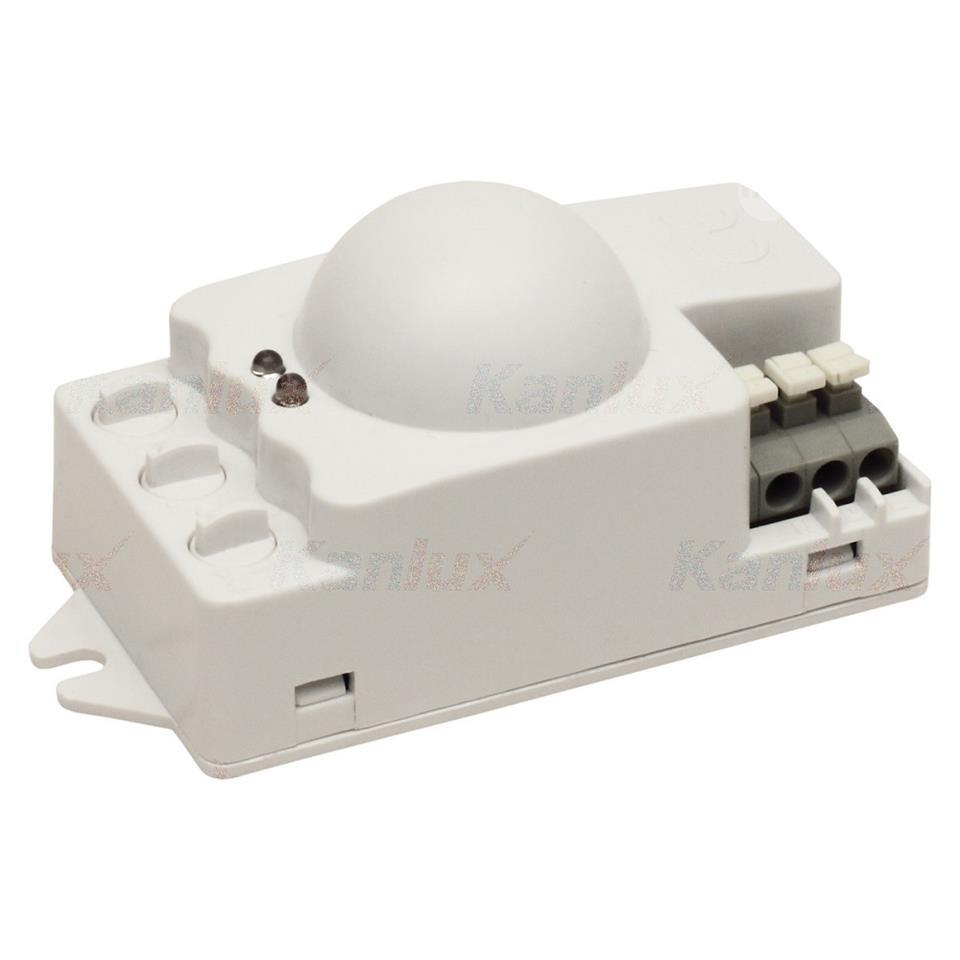

Motion sensor MW ROLF JQ Kanlux Kanlux ROLF JQ is a microwave motion sensor. Its horizontal operating angle is 360 degrees. Both the lighting time and the external illuminance level at which the sensor works can be adjusted. Basic information EAN13:  5905339088208 Supplier code: 8820 Color:  white Material:  plastic material Place of use:  indoors Weight and size Height [mm]:   42 Width [mm] :   42 Length [mm] :   92 Weight :   60g Technical data Rated voltage [V]:   220-240 AC Nominal frequency [Hz] :   50/60 Color :   white Maximum power [VA] :   1200 IP rating 20 Mounting location :   wall mount, ceiling mount, wall/ceiling mount Degree of protection against electric shock :   II Possibility of mounting on normally flammable surfaces :   yes Sensor range [m] :   max 8 Sensor range [°] :   H360/V160 Minimum operating time [s] :   5 Maximum operating time [min] :   12 Sensor operating time [second-minute] :   5-12 Sensor operating frequency [MHz] :   5.8 Sensor type :   microwave Setting of the illumination intensity with which the sensor detects movement [lx] :   2-2000 Micro gap between relay contacts : yes Sensitivity adjustment Operating temperature [°C] :   5÷25 Type of connection :   terminal block Sections of the cables used [mm] :   1÷2,5
