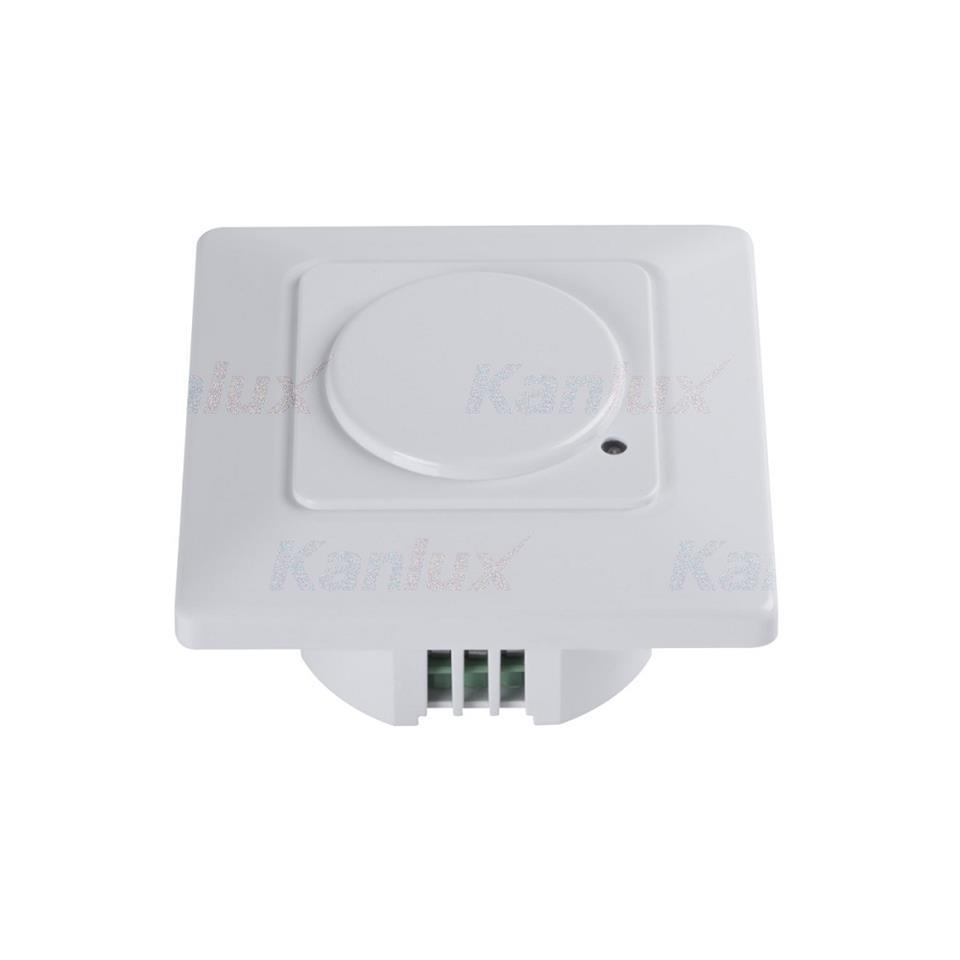

Motion sensor MW MERGE white Kanlux The Kanlux MERGE MW sensor is an aesthetic and functional solution. The maximum motion detection range is 9 meters. Both the lighting time and the external illuminance level at which the sensor works can be adjusted.   Basic information EAN13:   5905339234537 Supplier code: 23453 Color:   white Material:   plastic material Place of use:   indoors Weight and size Height [mm]:   80 Width [mm]:   47 Length [mm]:   80 Weight:   92g Technical data Rated voltage [V]:  220-240 AC Rated frequency [Hz]:  50/60 Color:   white   Maximum power [VA]:   1200 IP rating  20 Installation location:   for recessed mounting in the wall Degree of protection against electric shock:   II Possibility of mounting on normally flammable surfaces:   yes Sensor range [m]:   max 9 Sensor range [°]:   180 Minimum operating time [s]:   10 Maximum operating time [min]:   12 Sensor operating time [second-minute]:   10-12 Sensor operating frequency [MHz]:   5.8 Sensor type:   microwave Setting of the illumination intensity with which the sensor detects movement [lx]:   3-2000 Micro gap between relay contacts Sensitivity adjustment Operating temperature [°C]:   5÷25 Type of connection:   terminal block Sections of the cables used [mm]:   0.75÷1.5
