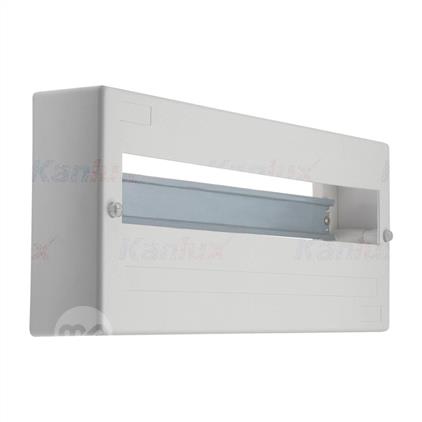

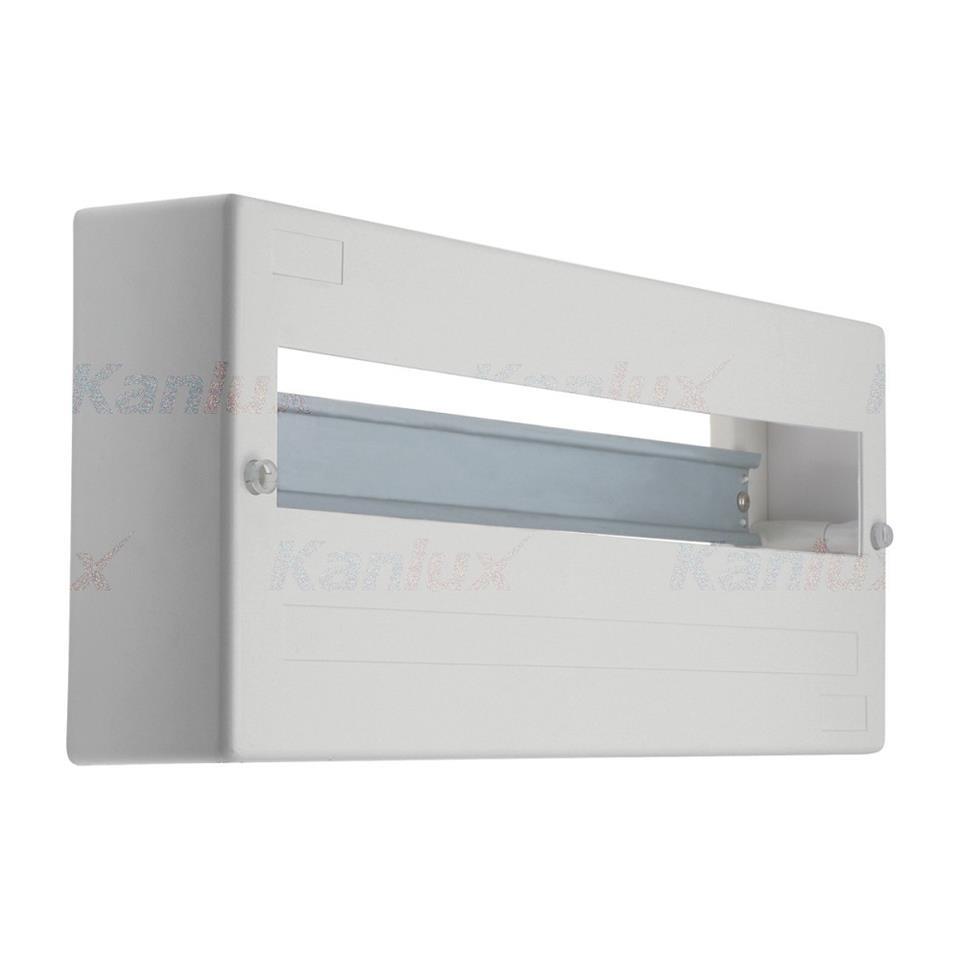

Wall-mounted electrical distribution panel DB series 18 Kanlux modules
€ 12.00 + € 5.00 DELIVERY
Description
Wall distribution board DB series 18 Kanlux modules Electrical panels of the DB series that satisfy the requirement of heat resistance with a temperature of 650° C can only be used on non-combustible surfaces (for example solid walls made of non-flammable materials).They cannot be applied on flammable surfaces (for example plasterboard, wood), on so-called "hollow walls" or on technical shafts. Basic information EAN13: 5905339038548 Vendor code: 3854 Color: white Material: plastic materialÿ Weight and dimensions Weight: 390g Technical data Rated voltage [V]: 230/400 AC Nominal frequency [Hz ]: 50 Color: white Rated current [A]: 63 Modules: 18P Mounting location: wall mounting IP Grade 30 temperature resistance [°]: 650 IK grade 06 Degree of protection against electric shock: II number of files: 1 Standards: PN-EN 62208
Item Details
9812150
166
Consumer Electronics
30/08/2024
New
