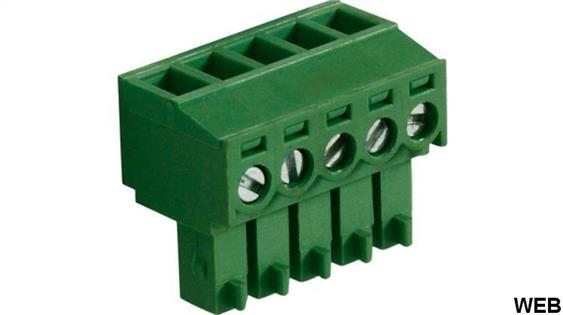

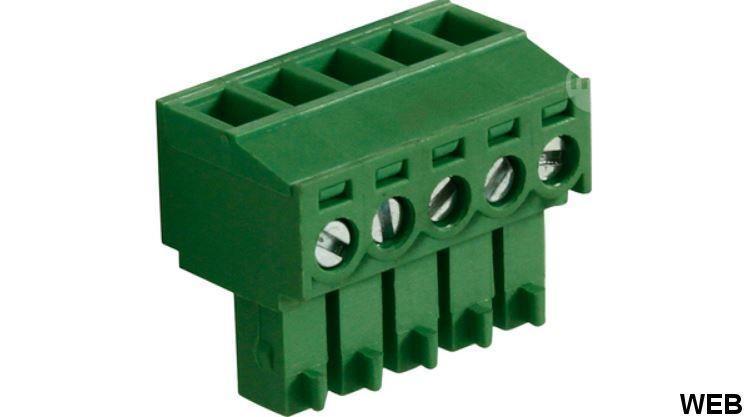

Female Connector, 5 Poles, 3.81mm Pitch, 8A, 1.31mm², Straight        Mounting type Wired connection Type Plug-in socket Step 3.81mm   _ Poly 5 Rated current 8   A Voltage rating 125V   _ Legend Nobody Approvals cUL Flammability UL 94 V-0 Operating temperature, min. -33   °C Operating temperature, max. 120   °C Orientation Straight Wire connection method Screw, trolley clamp Max. AWG Wire Size 16AWG   _ Min. AWG Wire Size 26AWG   _ Wire size mm2 max. 1.31   mm² Wire dimensions mm2 min. 0.13   mm²  Plugs closed Polarized moldings Withstand voltage - AC2000V/1min Guided pin alignment Protection with tinned cable Screw/pair - Steel M2, tinned, 0.2 Nm Recommended dimensions for hole on printed circuit - ø 1.4 mm  Manufacturer code:   RND 205-00125
