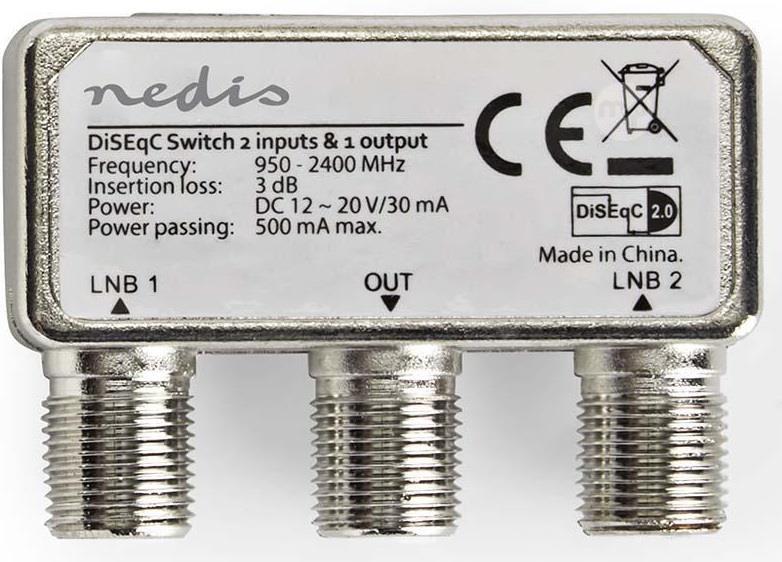

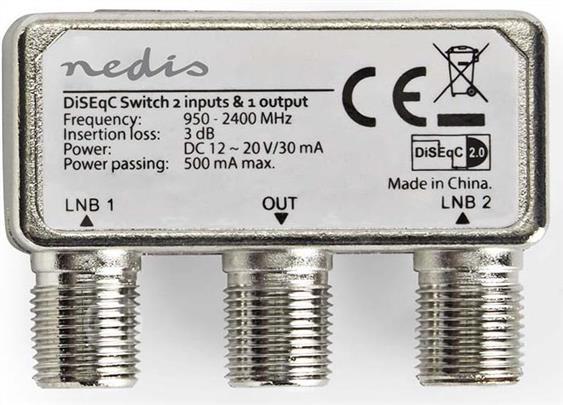

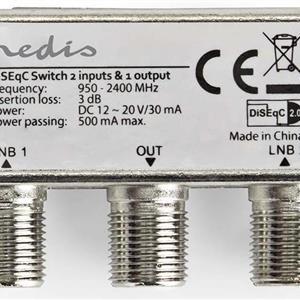

DiSEqC switch 2-1 F connector 950-2400MHz DiSEqC switch Functions • Rugged waterproof housing for superior durability • Low insertion loss for high signal quality • Two inputs and one output for receiving two satellites on one receiver Product Specifications Connector type F connector Number of entries 2 Model Diseq switch Number of exits 1 Connection output 1x F-Female Connector Connection input 2x F-Female Connector Satellite frequency range 950 - 2400MHz Diseqc version 2.0 Power absorbed in operation 10mA insertion loss 3dB Color Silver/White Characteristics Rain Protection Hood Materials Zinc Input voltage 12-20VDC   Supplier Code: SSWI200WT EAN code: 5412810298303
