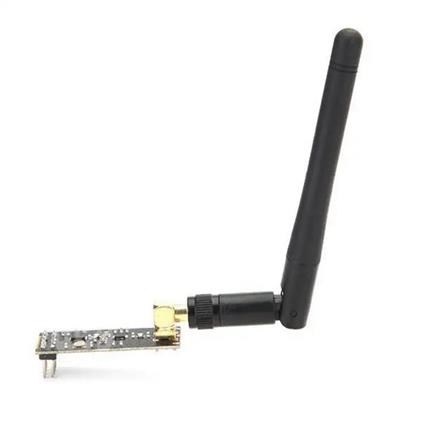

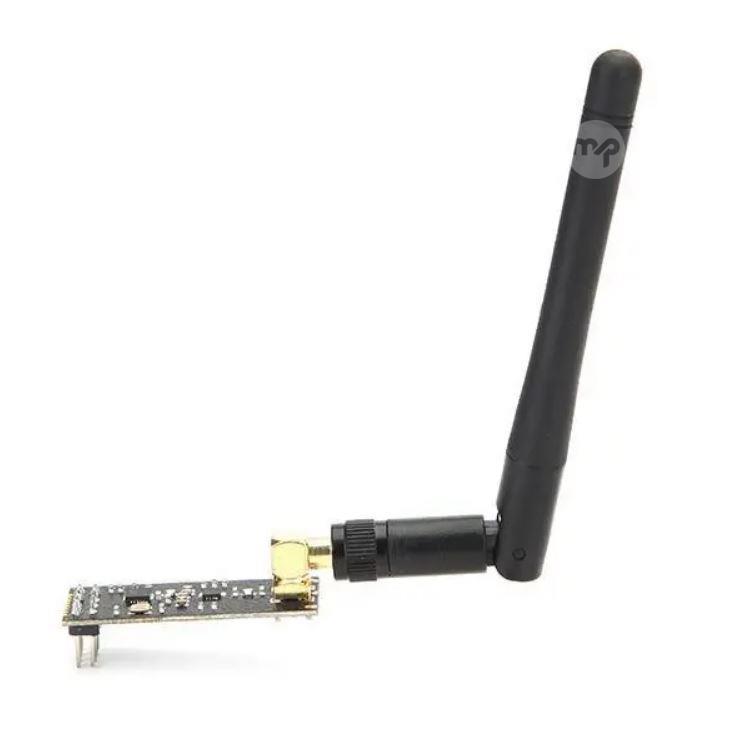

Wireless module for Arduino with 2,4 Ghz antenna - NRF24L01 + PA + LNA

€ 9.00 + € 5.00 DELIVERY

Description

Wireless Module for Arduino with 2,4 Ghz antenna - NRF24L01 + PA + LNA High power and high sensitivity wireless module NRF24L01P + PA + LNA division for very long distance data transmission. 2.4G wireless module ISM band NRF24L01P + PA + LNA wireless module to work.   Features Voltage: 3-3.6 V. Maximum output power: +20 dBm Working current in transmission mode: 115mA Working current in receiver mode: 45mA Current in mode: 4.2uA Operating temperature: -20-70 degrees Sensitivity of the receiver: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode PA Growth: 20dB LAN Growth: 10dB LAN noise figure: 2.6 dB Antenna growth: 2dBI 2M rate: 520m

Item Details

9818885
69
Consumer Electronics
11/09/2024
New
