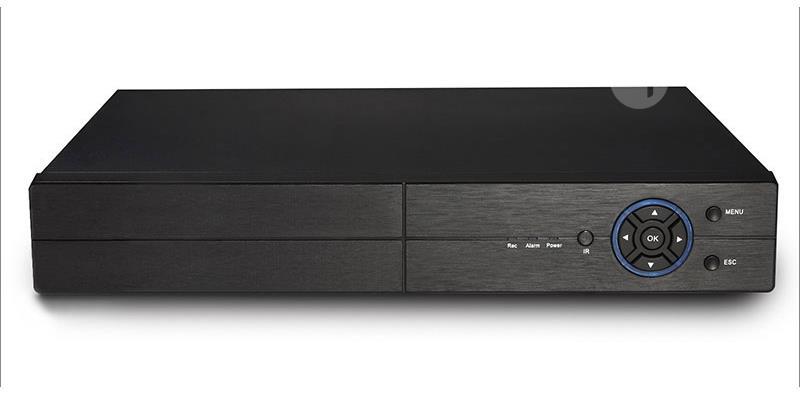

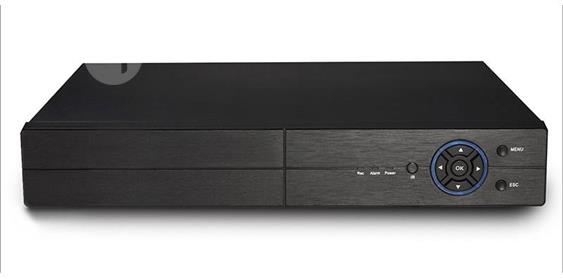

8CH HD Hybrid DVR Hybrid recorder for 8 AHD analog and digital IP channels, configurable in different resolutions.Compatible with normal analog cameras (whatever their resolution), with analog cameras in high definition (AHD-M max. 720P from 1280x720pixel and AHD-L, max. 960H from 960x576pixel, where both allow connections on coaxial cable up to approx. 500m.) And with the IP digital ones (max. 1080P from 1920x1080pixel in high definition).IP cameras should only be connected to the HVR via a network switch.  Features  Video / Audio Inputs: 8 BNC Video / 4 RCA Audio Camera pairing mode: Analog DVR: 8 in AHD- M (720P) / AHD-L (960H);8 up to D1 (704x576pixel) Hybrid HVR: 4 in AHD-M (720P ) / AHD-L + 4 digital IP up to 720P IP-only digital NVR: 2 up to 1080P + 2 up to 720P; 8 up to 720P  Internet One-Click P2P Free with connection to the Cloud server Display from Apple / Android Tablet and Smartphone  Supported browsers: IE, Firefox, Chrome, Safari Video / Audio outputs: 1 HDMI + 1 VGA / RCA (audio) Recording: 8CH up to 720P @ 200fps  Simultaneous playback: 1CH at 720P @ 25fps + 3CH 720P @ 36fps;4CH at 960H @ 100fps + 4CH 960H @ 48fps PTZ function (Pan Tilt Zoom ) with RS-485 serial port to connect from 1 to 8 motorized cameras  Back Up mode: from USB to pen drive or HDD, from network. Advanced functions: Motion Detection, Video Loss Alarm, Camera Blinding Alarm. Recording mode: Continuous, Scheduled, Motion Activation. E -mail Alert following an event. Supports HDD up to 4TB (Sata 3.5 ") Supports DHCP / PPPoE / FTP / UPNP / DNS / DDNS IP protocol: Onvif 2.3 Users online simultaneously max. 6  CMS software for managing multiple recorders (max. 64 channels) Remote control and Mouse supplied Dimensions 330x45x235mm
