he set includes a durable and robust industrial-grade electric actuator with high-quality ball valve.

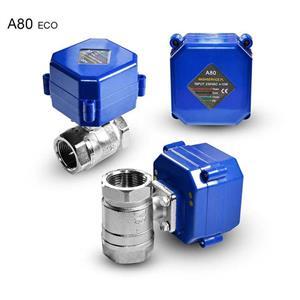

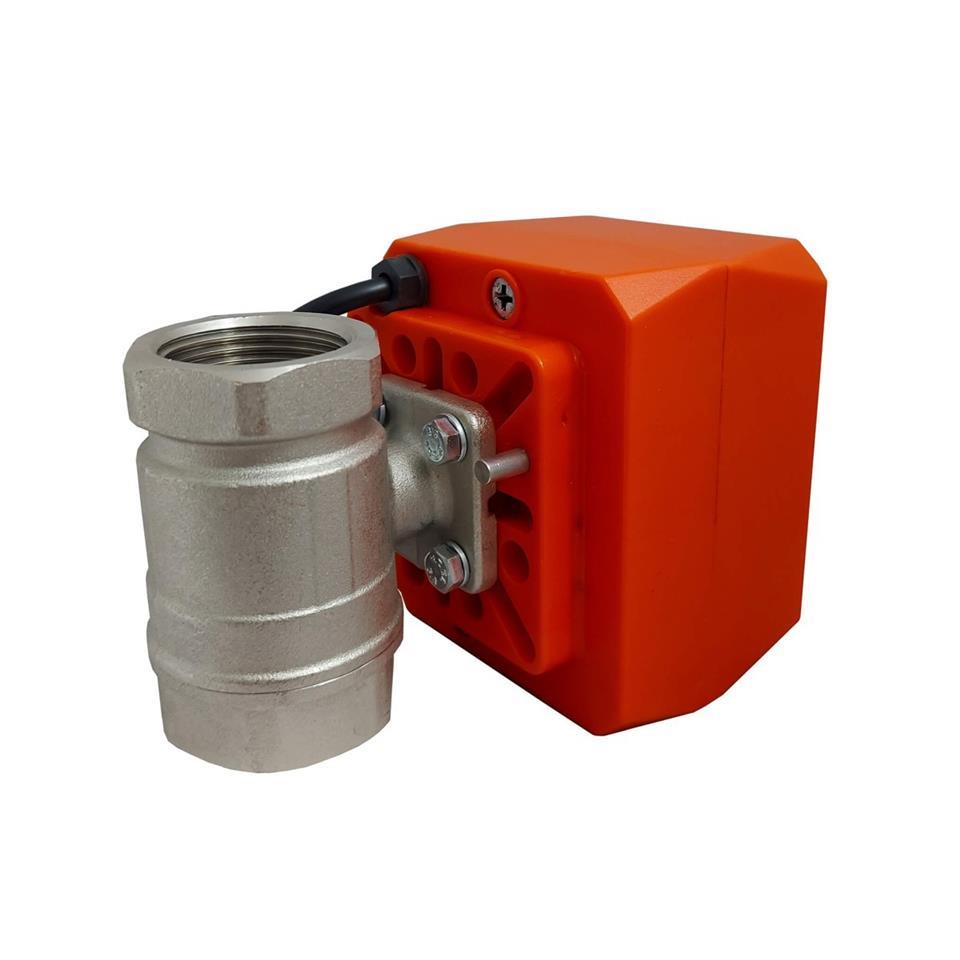

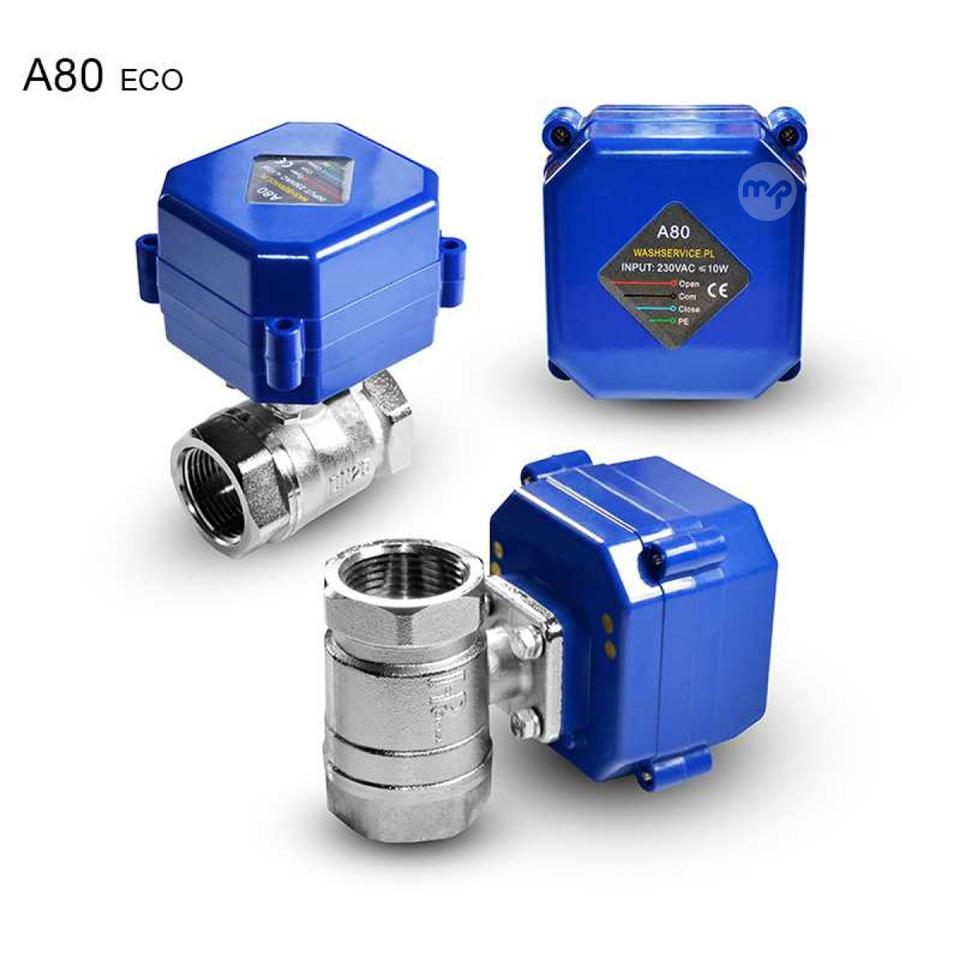

A83 and A80 ECO electric actuators are designed to operate ball valves. They are intended for assembly directly on two and three-way ball valves with diameters from 1/2 to 1 1/4 inch (DN15, DN20, DN25, DN32) with a mounting plate conforming to ISO5211. A83 electric actuators can work with both brass and stainless steel valves with a rotation angle of up to 90 degrees.

Electric actuator is characterized by its compact size and high torque. It has been designed to be easy to use and install. In addition, the actuator A83 has the ability to manually open or close the ball valve in emergency cases and a position indicator.

A83 electric actuators are available in various control and power versions, including 230V AC, 12V DC or 24V DC. They are equipped with limit switches that cut off the power consumption when idle.



NEW! We offer the A83 WIFI electric actuator cooperating with the Tuya/Smart Life app.



Technical data of actuators:

Low power consumption only when position changes. Switches off the actuator.
Small size suited for valves
Power consumption - A80 ECO - 10W, A83 - 6W
Maximum torque - 8 Nm
Opening/closing time – A80 ECO - 10s, A83 - 8s
Waterproof class - IP54

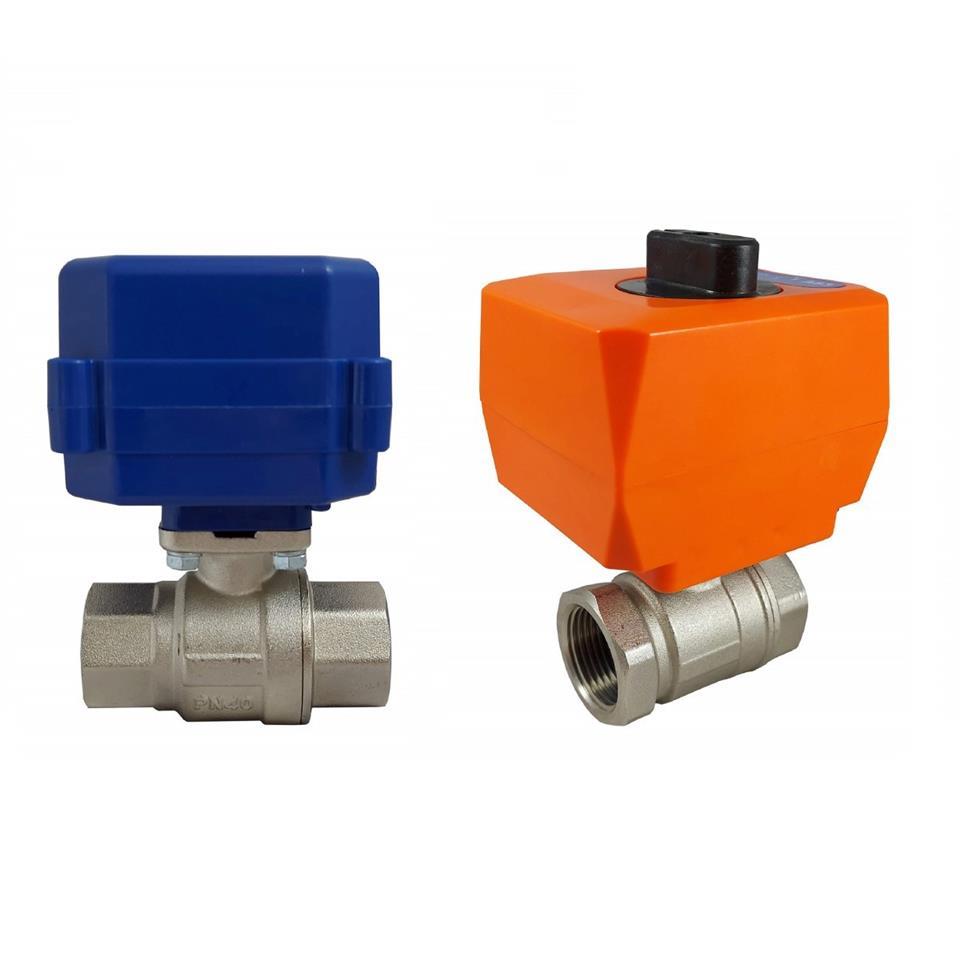

Housing colour - A80 ECO - blue, A83 - orange
Housing material - PA
The mechanism of steel
Mechanical position indicator on the lid (except A80 ECO)
Wire length 900 mm
Ambient temperature: -10 °C to 50 °C
Ball valve 3/4 inch DN20 PN40 plate for connection of the electric actuator compatible with ISO5211

Technical description:

Possibility of manual control or connection of pneumatic or electric actuator.

Technical data:

-material: nickled brass

-type: 2 way valve

-valve plate compatible with ISO5211 - type F03

-working pressure 0-40bar

-temperature range from -20 °C to 150 °C

-Connection: internal thread 3/4 inch

OTHER SIZES & CONFIGURATION ALSO AVAILABLE. CONTACT US FOR MORE INFORMATION.
