To visualize temperature differences in detail and intelligently document the results
High thermal resolution and extended measuring range, for maximum versatility

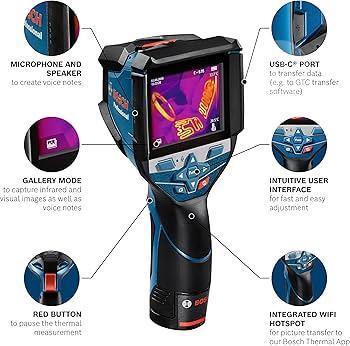

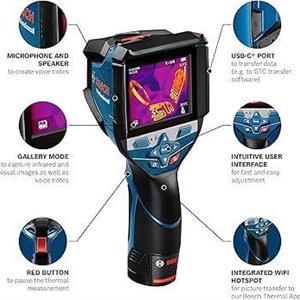

Voice note and Bosch ThermalOn app for easy documentation of thermal images
Intuitive control interface and perfectly integrated functions, for flawless work in just a few clicks

The most important data
Battery voltage
12.0V
Measuring range*
From –20 °C to +600 °C
IR measurement accuracy*
± 2.0 °Cᵇ
Resolution
0.1 °C
Thermal sensitivity (NETD)
≤ 50 mK
IR sensor dimensions
256x192 px
Number of measuring points
49.152
Power supply and autonomy
GBA 12V 2.0Ah: 6 hours
Image memory (number of images)
600
Image file format
.jpg
Data transmission
Wi-Fi, USB-C®
Impact protection
2 m
Dust and water protection index*
IP54** (**Except lithium battery)
Weight**
0.6 kg
Display Size
3.5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 50 °C
Focal distance, minimum
0.3 m
Thermal image refresh rate
9 Hz
Frame buffer (number of images each with audio)
350
Audio file format
.wav
