Multi functional pocket multimeter providing a wide range of measurements, including AC/DC voltage, DC current, resistance, diode assembly test/transistor hFE test and continuity buzzer.
– Large 15mm LCD display
– 1999 count multimeter
– Datahold button.
– Overload protected
– Diode assembly test/Transistor P-N junction test/Transistor HFE test
– Continuity test with buzzer sound in circuit
– Low battery voltage indication
– DC Voltage: 200mV to 600V ±0.5%, 600V ±0.8%
– AC Voltage: 20V to 600V ±1.2%
– DC Current: 5mA to 500A ±1%, 200mA ±1.5%, 10A ±3%
– Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±0.8%
– Operating Temperature: -0℃ to 50℃
– Over Range Indication: Only figure “1” on the display
– Polarity Indication: “-” displayed for negative polarity
– Low Battery Indication: +/- display
– Battery type: 2xAAA battery (included)
– Dimension: 150 x 75 x 35mm

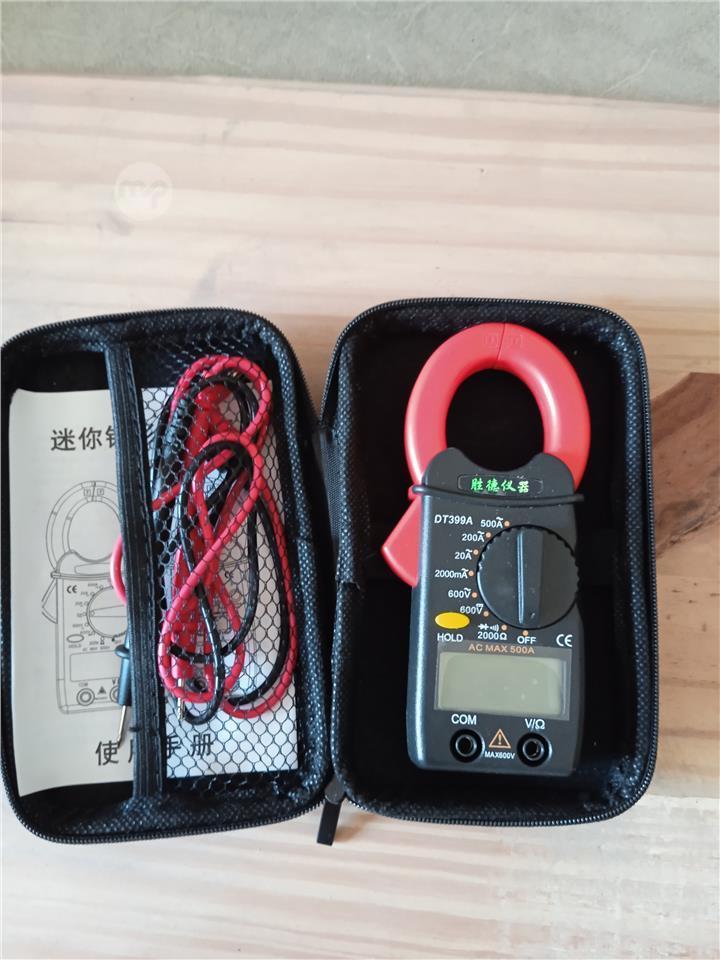

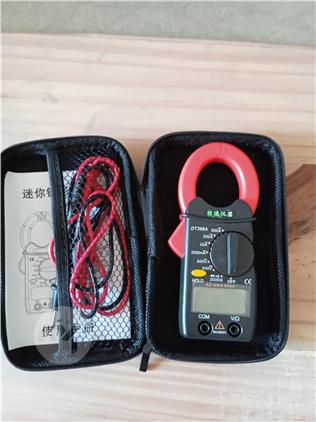

– Package includes: 1x LCD Digital Clamp Multimeter, 2x AAA batteries, 1x Pair Test Leads, 1x English User Manual
