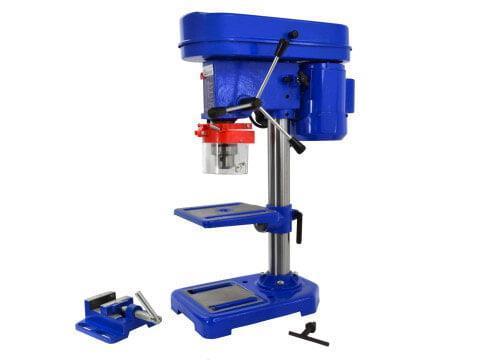

Product Features


250 Watt induction motor develops ample torque and power

Multiple Spindle Speeds: 5 speeds

Worktable is height adjustable and bevels up to 45 degree left and right

Locking linear depth stop with scale

Spindle travels up to 50 mm / 2 inch

Transparent flip-up chuck safety

Drilling capacity 16 mm


Technical Data


Moc silnika: 250W

Input Voltage: 230V / 50Hz

Spindle Speeds Range: 580 - 2650 rpm

Number of Speeds: 5

Chuck Capacity: 3 - 16 mm

Spindle Taper: B16

Drilling Depth Indicator Scale: 0 - 5 cm

Spindle Travel: 50 mm

Distance from Spindle Axis to Column Surface: 105 mm

Max. Distance from Chuck End to Table Surface: 170 mm

Max. Distance from Chuck End to Base Surface: 250 mm

Column Diameter: 46 mm

Throat: 175 mm

Worktable Size: 16 x 16 cm

Worktable Tilts: +/- 45°

Base Size: 295 x 190 mm

Product Height: 575 mm

Accessories: machine vice 2.5 inch, key for chuck

2 YEARS GUARANTEE
Prices vat included

For Free delivery in malta minimum order is Eu 50.00
BILLY ENGINEERS 44 CROSS ROAD MARSA
