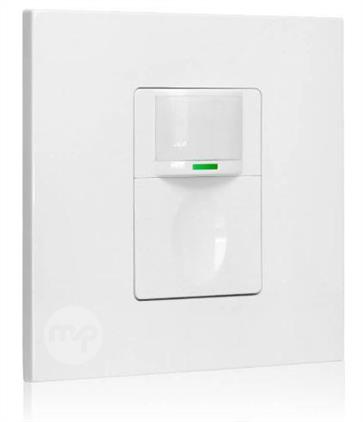

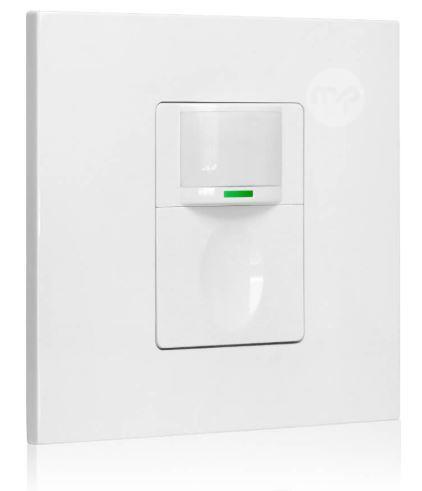

RZ023-10A motion sensor switch, 100~265V, 10A. Direct replacement for British standard wall switch. Neutral wire required. Advanced PIR motion sensor for accurate motion detection. Occupancy/Vacancy mode with Rayzeek’s exclusive manual ON/OFF mode.

Rayzeek’s manual ON/OFF mode allows users to keep the load always ON/OFF, just like a regular wall switch. By simply pressing a button on the panel, you can change from Occupancy/Vacancy mode to manual mode and vice versa without losing any settings. This feature allows users to have permanent manual control of the load and override the motion detecting mode when in need.

This motion sensor light switch also allows users to temporarily turn ON/OFF the light without exiting the current detecting mode and allows 6 levels of time delay adjustment from 15 s to 30 mins and 3 levels of light sensor adjustment from OFF, 15 lux to 35 lux. RZ023-10A provides maximum flexibility and is competent for every home & commercial use case.

• Sensor Modes: Occupancy, Vacancy and Manual modes.
• Sensors: PIR motion sensor. Light sensor(photocell).
• Features: Adjustable time delay and light sensor.
• Wiring: Hot, live, neutral wire.
• Use Cases: Living rooms, bathrooms, offices. Anywhere a regular single pole light switch is used due to the ON/OFF mode.
