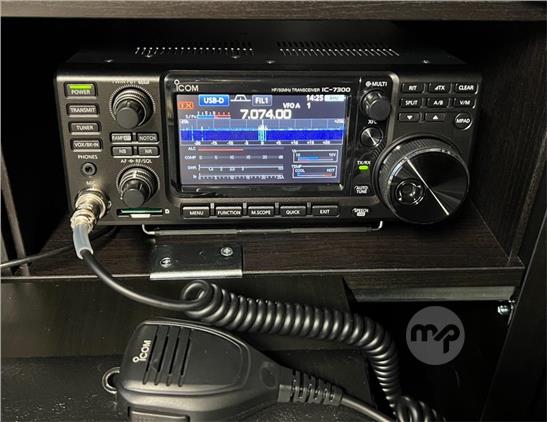

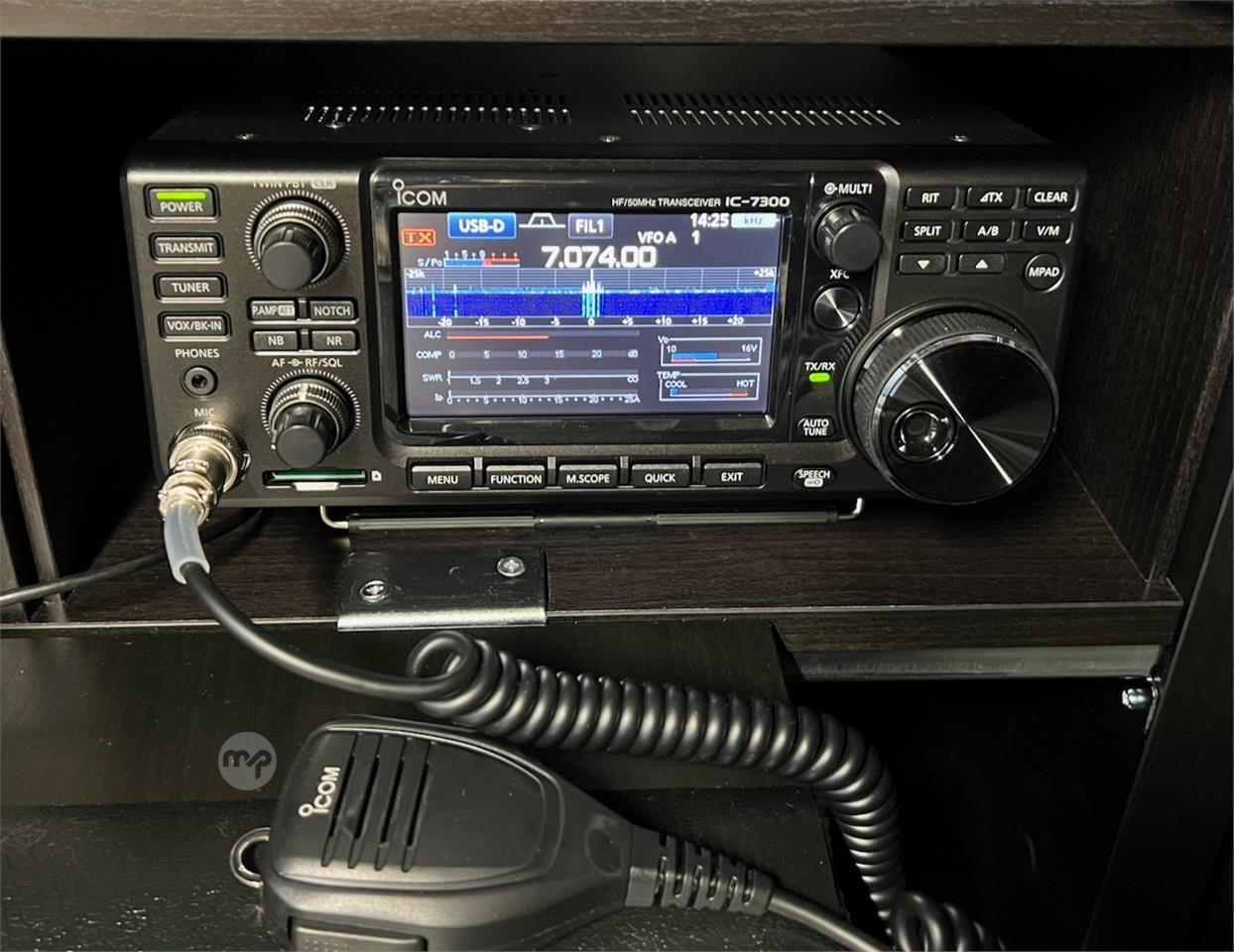

ICOM IC7300 Perfect Working Condition non Smoking environment original Microphone & Box

Specifications:
General
Frequency coverage Rx*
0.030–74.800MHz
(Guaranteed range: 0.500–29.999, 50.000–54.000MHz, 70.000–70.500MHz.)

Tx* 1.800–1.999MHz, 3.500–3.800MHz,
7.000–7.200MHz, 10.100–10.150MHz,
14.000–14.350MHz, 18.068–18.168MHz,
21.000–21.450MHz, 24.890–24.990MHz,
28.000–29.700MHz, 50.000–52.000MHz,
70.000–70.500MHz

* 70 MHz band is for EUR version. Each frequency range is differ according to versions.
Mode SSB, CW, RTTY, AM, FM
Number of channels 101 (99 regular, 2 scan edges)
Antenna connector SO-239 (50Ω)
Power supply requirement 13.8V DC ±15%
Power consumption Tx 21A (at 100W output power)
Rx 0.9A typical (Standby),
1.25A (Maximum audio)
Operating temperature range –10˚C to +60˚C; 14˚F to 140˚F
Frequency stability Less than ±0.5ppm
(–10˚C to +60˚C; 14˚F to 140˚F)
Frequency resolution 1Hz
Dimensions (W×H×D)
(projections not included) 240×94×238mm;
9.45×3.7×9.37in
Weight (approximately) 4.2kg; 9.26lb
Transmitter
Output power
(HF/50MHz) SSB, CW, FM, RTTY 2–100W (HF/50MHz), 2–50W (70MHz)
AM 1–25W (HF/50MHz), 1–12.5W (70MHz)
Modulation system SSB Digital P.S.N. modulation
AM Digital Low power modulation
FM Digital Reactance modulation
Spurious emissions Less than –50dB (HF bands),
Less than –63dB (50MHz band),
Less than –60dB (70MHz band)
Carrier suppression More than 50dB
Unwanted sideband More than 50dB
Microphone impedance 600Ω
Receiver
Receiver system Direct Sampling Superheterodyne
Intermediate frequency 36kHz
Sensitivity SSB/CW (BW: 2.4kHz at 10dB S/N)
1.8–29.995MHz 0.16μV (Preamp 1 ON)
50MHz 0.13μV (Preamp 2 ON)
70MHz 0.16μV (Preamp 2 ON)
AM (BW: 6kHz at 10dB S/N)
0.5–1.8MHz 12.6μV (Preamp 1 ON)
1.8–29.995MHz 2.0μV (Preamp 1 ON)
50MHz 1.0μV (Preamp 2 ON)
70MHz 1.0μV (Preamp 2 ON)
FM (BW: 15kHz at 12dB SINAD)
28.0–29.7MHz 0.5μV (Preamp 1 ON)
50MHz 0.25μV (Preamp 2 ON)
70MHz 0.25μV (Preamp 2 ON)
Sensitivity (for RED version) SSB/CW (BW: 2.4kHz at 12dB SINAD)
1.8–2.999MHz 10dBμV emf (Preamp 1 ON)
3.0–29.999MHz 0dBμV emf (Preamp 1 ON)
50MHz -6dBμV emf (Preamp 2 ON)
70MHz -6dBμV emf (Preamp 2 ON)
AM (BW: 4kHz, 60% modulation at 12dB SINAD)
1.8–2.999MHz 16dBμV emf (Preamp 1 ON)
3.0–29.999MHz 6dBμV emf (Preamp 1 ON)
50MHz 0dBμV emf (Preamp 2 ON)
70MHz 0dBμV emf (Preamp 2 ON)
FM (BW: 7kHz, 60% modulation at 12dB SINAD)
28.0–29.700MHz 0dBμV emf (Preamp 1 ON)
50MHz -6dBμV emf (Preamp 2 ON)
70MHz -6dBμV emf (Preamp 2 ON)
Squelch sensitivity (Threshold) SSB Less than 5.6μV
FM Less than 0.3μV
(HF: Preamp 1 ON, 50/70MHz: Preamp 2 ON)
Selectivity (sharp filter shape) SSB (BW: 2.4kHz)
More than 2.4kHz / –6dB
Less than 3.4kHz / –40dB
CW (BW: 500Hz)
More than 500Hz / –6dB
Less than 700Hz / –40dB
RTTY (BW: 500Hz)
More than 500Hz / –6dB
Less than 800Hz / –40dB
AM (BW: 6kHz)
More than 6.0kHz / –6dB
Less than 10.0kHz / –40dB
FM (BW: 15kHz)
More than 12.0kHz / –6dB
Less than 22kHz / –40dB
Spurious and image rejection ratio HF More than 70dB
50/70MHz: More than 70dB (Except for ADC Aliasing)
Audio output power More than 2.5W
(at 10% distortion with an 8Ω load, 1kHz)
Tuner
Frequency range 1.9–70MHz bands
Matching impedance range 16.7Ω–150Ω unbalanced (VSWR better than 1: 3)
Tuning accuracy VSWR 1: 1.5 or less
Tuning time 2–3 seconds (Maximum 15 seconds)
