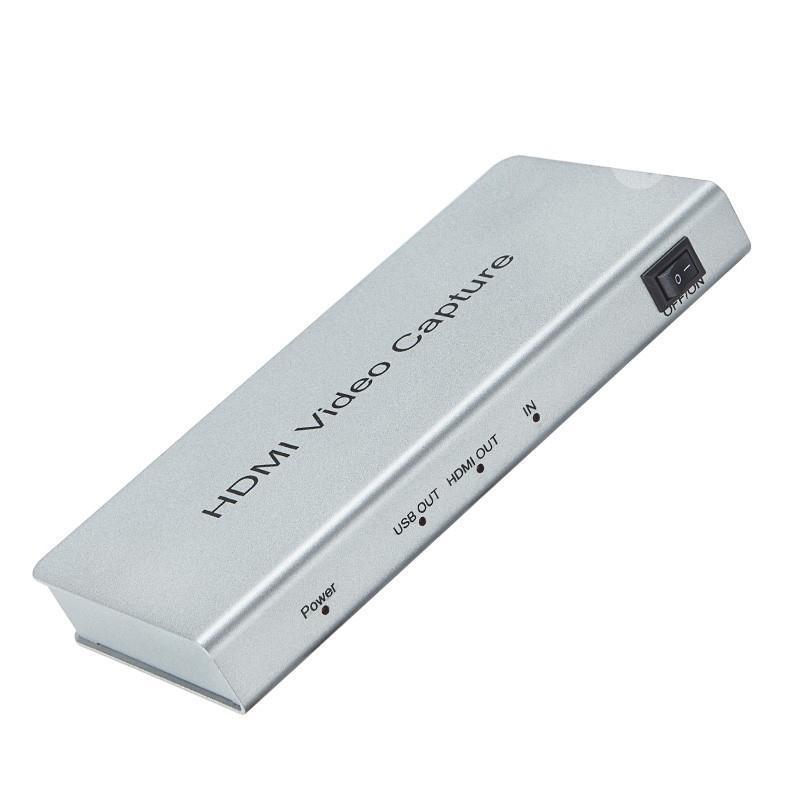

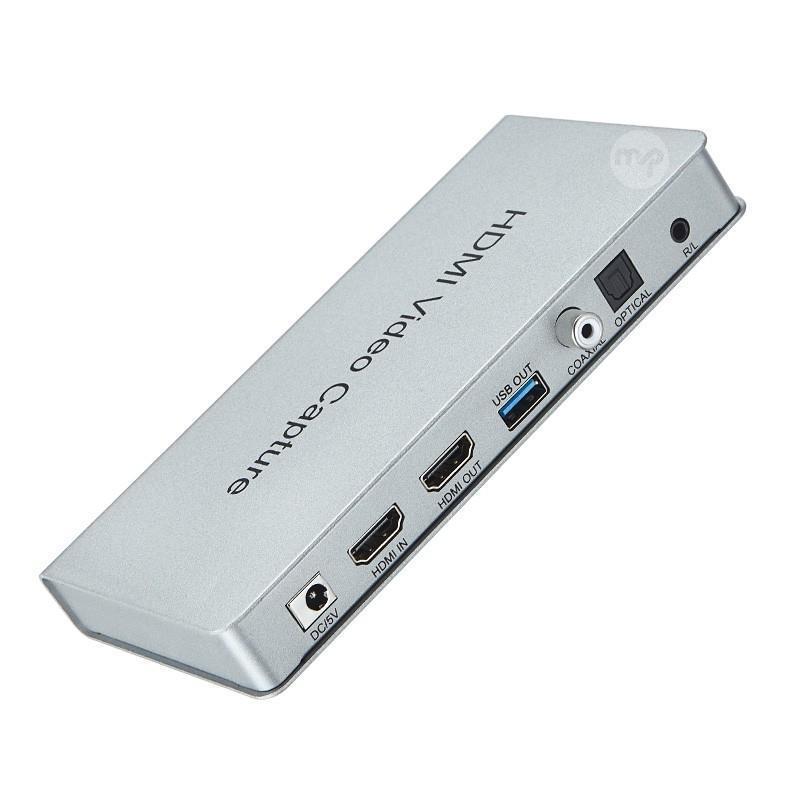

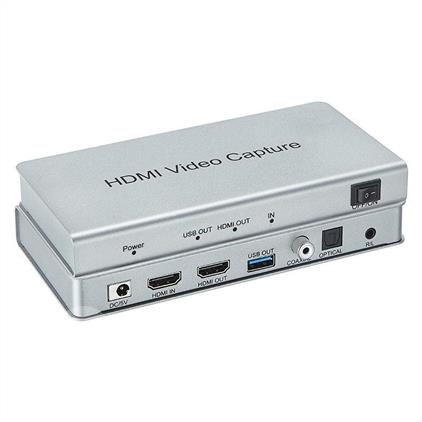

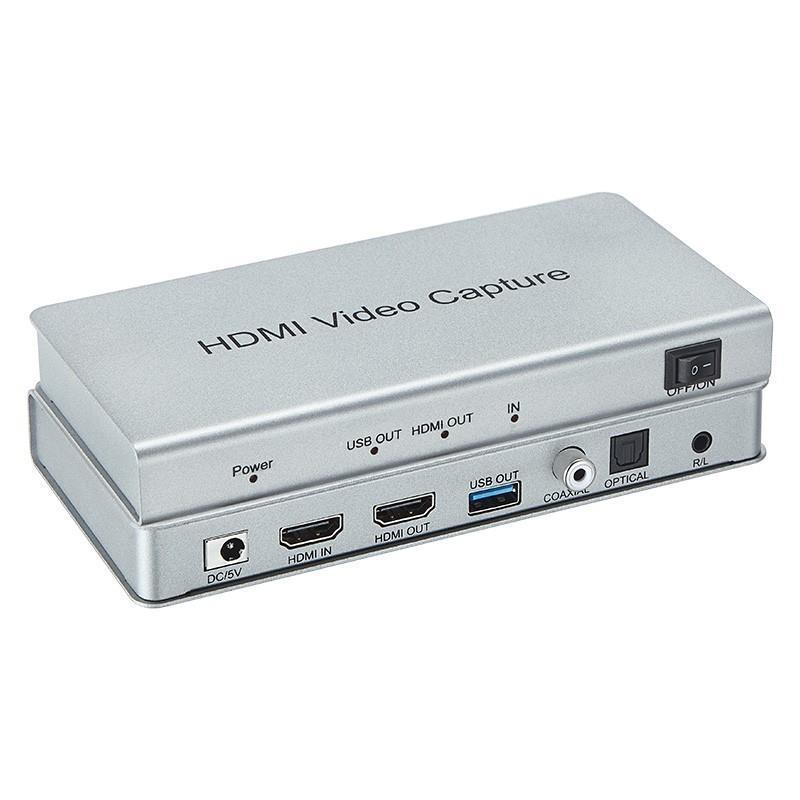

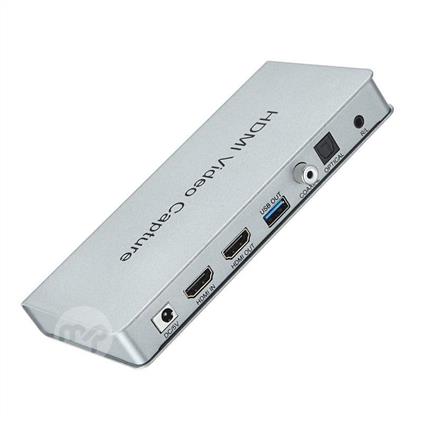

The AirBase HD-VC30-1 is a high-quality HDMI video capture device designed to record or stream HD video and audio through USB 3.0. It simultaneously outputs HDMI to a monitor/projector and USB to a computer, making it ideal for gaming, streaming, presentations, and video recording.

Key Features

Supports input resolution up to 1080P @ 60Hz

USB video output resolution up to 1920×1080 @ 30Hz

Supports 8-bit color depth

HDMI bandwidth up to 1.49Gbps, TMDS clock up to 148.5MHz

Supports L-PCM audio

Compatible with major capture software: OBS, VLC, Amcap

HDMI cable support: up to 8m (AWG26, 1080p and below)

USB 3.0 cable support: up to 1.5m

USB Video Class: UVC 1.5 / 1.0 compliant

Technical Specifications

Input: HDMI

Output: USB 3.0 (to PC), HDMI (loop-out)

Maximum throughput: 148.5 MHz

Max transfer rate: 1.49 Gbps

Operating current: ≤1A

Power supply: DC 5V / 1.5A

Dimensions: 162 × 80 × 23 mm

Weight: 420 g

Operating temperature: –10°C to +55°C

System Requirements

Processor: Desktop i5-3400 or higher / Laptop i7-3537U or higher

GPU: Desktop NVIDIA GT630 or higher / Laptop GT735M or higher

RAM: 4 GB or more

Package Includes

1× HDMI to USB 3.0 Video Capture Device

1× USB 3.0 Cable (1.5m)

1× Power Adapter 5V/1.5A

1× User Manual
