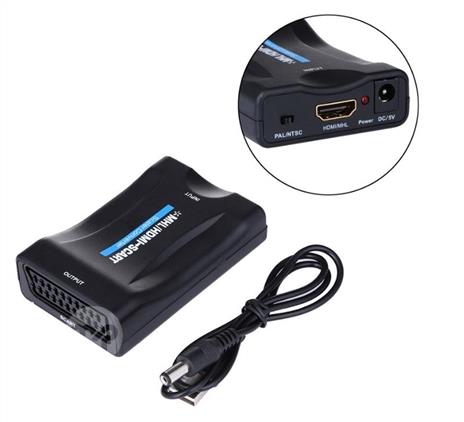

The HDMI/MHL to SCART Converter can convert digital HDMI and MHL video&audio signal to composite analog video signal and the FL/FR stereo audio signal, it supports DVI system sideline signals. It can convert the high quality of the HDMI signal and smart Phone MHL signal to normal CVBS signal. So that can play on CRT TV, VHS VCR, DVD recorders, etc. The MHL/HDMI to SCART converter support NTSC and PAL TV formats output.

Features:

Can convert HDMI and MHL digital signal to Scart composite analog signal.
Support NTSC and PAL two standard TV formats output
Compatible with HDMI1.4
Share your smart phone photos, music and movies on the TV
Supplied with a USB cable, it can be powered by PC USB port or power adapter(No power adapter is included.).
Plug and play, no driver needed.
Mini size and lightweight, convenient to carry and use.

Interface:

1. HDMI Input: Use a "HDMI to HDMI cable" to connect it to your source equipment such like DVD, SKY Box, Game console. OR Use a "MHLto HDMI Cable" to connect it to your smart phone.
2. Power: Please use the power USB cable to connect the converter to the computer's USB, TV's USB or your 5V USB charger, etc. for power.
3. LED indicator: When the DC5V power on, the indicator will be light.
4. SCART output: Connect the SCART output to your TV which has SCART input.

specification :

Color: Black
Material: ABS
Input Port: 1x HDMI
Output Port: 1x SCART
Dimensions(mm): 88(D)x58(W)x26(H)
Wight: approx 58g
HDMI Input Resolutions:640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz,480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,720p50/60Hz,1080i50/60Hz,1080p23.97/24/25/50/59.94/60Hz.
CVBS Output: PAL, NTSC
Power Consumption (Max): 3W(we offer a power USB Cable)
Support MHL Smart Phone Series: - for Samsung I9100/I9108/I9188/I997/Galaxy Note I900;- for HTC G14/G18/G19/Flyer/EVO 3D/Z710/Z710e/Z710T;- for LG LU6200/P940;- for SONY LT26i / NOKIA N10
Note: Because of the different connecter, for Samsung Galaxy S3,S4 series (I9300/I9308/I939/Note2 N7100/I9500) need add a micro USB 5pin to 11pin connector.

Package content :

1 x HDML/ MHL To SCART Converter
1 x USB Power Cable
1 x User Manual (English)
