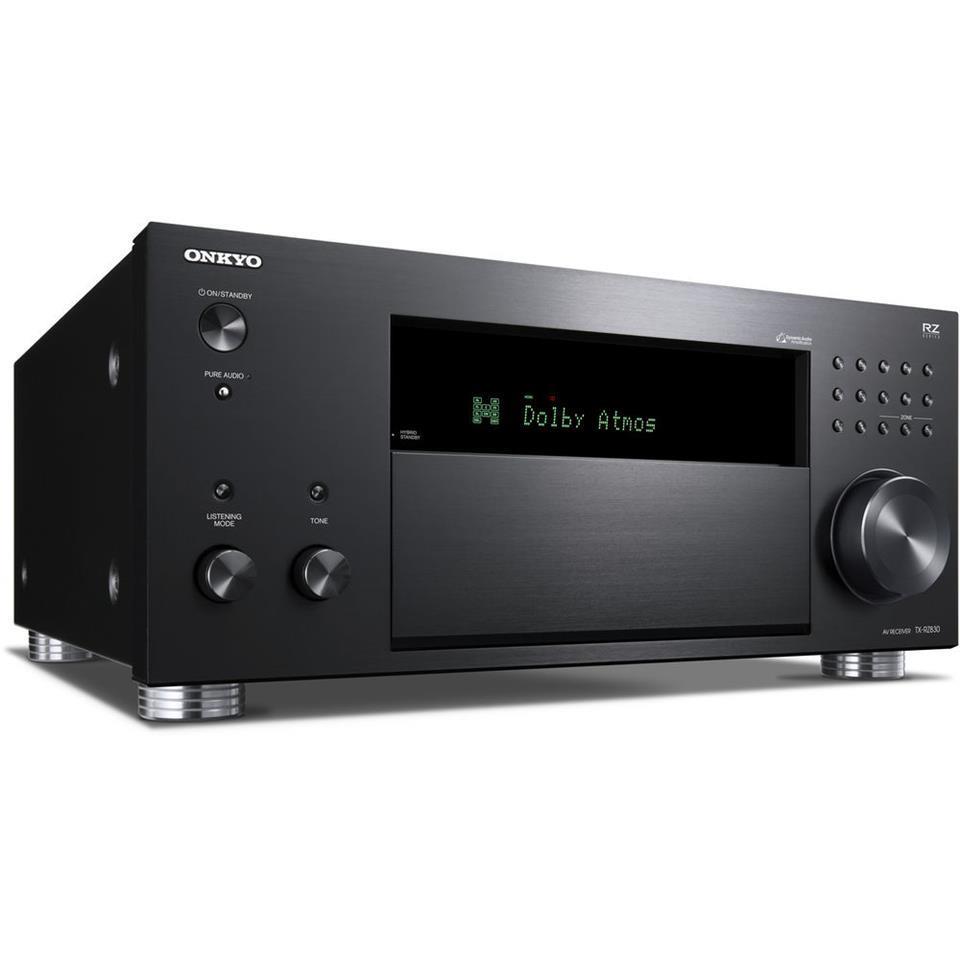

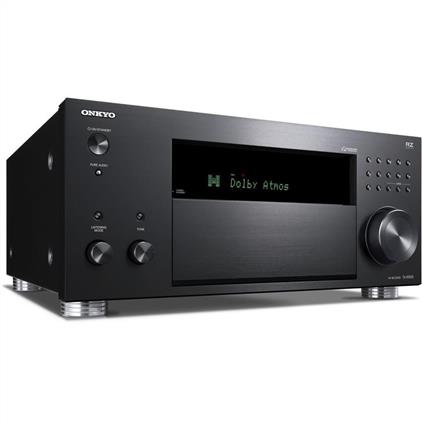

Onkyo TX-RZ830 9.2-Channel

in perfect condition


HIGHLIGHTS

180 W per channel

THX® Certified Select™ theater-reference sound quality

Dynamic Audio Amplification with 5 Hz–100 kHz reproduction

5.2.4-ch Dolby Atmos® and DTS:X® (7.2.4-ch with external amp)

HDMI® 7 In (1 Front*1), Main Out, and Sub/Zone 2 Out*2 supporting 4K/60 Hz, HDR10, HLG, Dolby Vision™, BT.2020, and HDCP 2.2 pass-through

Works with Sonos*

Chromecast built-in

Works with the Google Assistant

5 GHz/2.4 GHz Wi-Fi®, DTS Play-Fi® technology, FlareConnect™, AirPlay, Amazon Music, Spotify, TIDAL, Deezer(Deezer HiFi*), TuneIn*3

* Requires a free firmware update.

ADVANCED FEATURES

THX Certified Select theater-reference volume and sound quality

HDMI supports HDR10, HLG, Dolby Vision, BT.2020, and 4K/60 Hz pass-through and HDCP 2.2

Dolby Atmos and DTS:X playback through 5.2.4 or 7.2.2 channels

11.2 multichannel pre-outs and processing for 7.2.4-ch playback with an external stereo power amp

Powered ZONE 2 and powered ZONE 3 speaker outputs, Zone 2 and Zone 3 pre-/line-level outputs with DACs for digital*4 and analog audio playback

Cross-compatible upmixing for Dolby® and DTS® soundtracks with Dolby Surround and DTS Neural:X™ solutions

AccuEQ Advance room-acoustic calibration with standing wave correction and AccuReflex™ phase-alignment for Dolby Atmos-enabled speakers

Stable 5 GHz/2.4 GHz Wi-Fi connectivity

Easy multi-room management with Onkyo Controller app*5

Works with Sonos enabling integration into the Sonos Home Sound System with automatic power up, input switching, and volume preset via the Sonos app

Audio streaming with Chromecast built-in and voice control through devices with the Google Assistant built-in

DTS Play-Fi multi-room audio distribution technology via Onkyo Music Control App*5

FlareConnect multi-room audio distribution to compatible components

Supports audio streaming from iPad, iPhone, Mac, and iTunes via AirPlay

Amazon Music, Spotify, TIDAL, and Deezer(Deezer HiFi) music streaming services and TuneIn internet radio

Hi-Res Audio playback including DSD 11.2/5.6/2.8 MHz*6, 192 kHz/ 24-bit FLAC*7, WAV (RIFF)*7, AIFF, ALAC*7, and Dolby® TrueHD*8

Bluetooth® wireless audio technology for mobile, laptop, and PC (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)

Advanced Music Optimizer improves compressed digital audio quality (Bluetooth audio included)

Built-in low-noise phono pre-amp for Moving Magnet (MM) cartridges

Supports Front L/R bi-amping

480i de-interlacing (480i to 480p) via HDMI for legacy video formats

AMPLIFICATION FEATURES

Onkyo high-current digital Dynamic Audio Amplification system

5 Hz–100 kHz reproduction and high power to drive 4-ohm speakers

H.C.P.S. (High Current Power Supply) customized transformer

Extra-large customized block capacitors for instant power

VLSC (Vector Linear Shaping Circuitry) high-frequency noise removal technology (Front L/R channels)

Non-phase-shift amp circuitry for a clear and cohesive audio image

Discrete output stage circuitry for low distortion

PROCESSING FEATURES

Dolby Atmos and DTS:X reproduction through 5.2.4-ch or 7.2.2-ch (7.2.4-ch with external stereo power amp)

HDMI support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD® Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), multichannel PCM, and CEC

Precision AKM (AK4458) 384 kHz/32-bit multichannel DAC

PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio

32-bit Digital Signal Processing (DSP)

Pristine reproduction of audio-only sources in Pure Audio Mode

Listening modes for gaming (Rock, Sports, Action, and RPG)

Theater-Dimensional virtual surround-sound function

Direct Mode for audio reproduction close to original source quality

Independent tone controls (bass/treble) for all channels

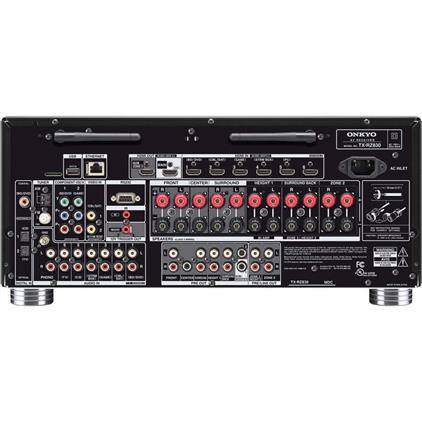

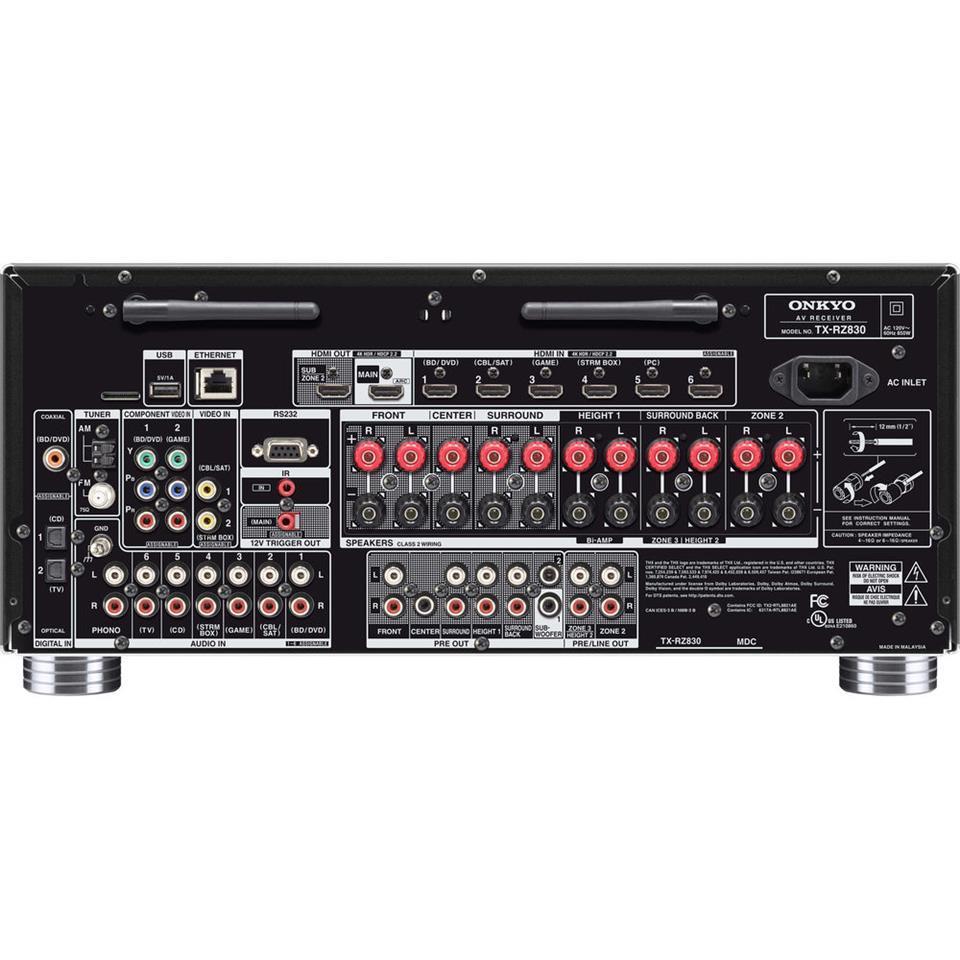

CONNECTION FEATURES

7 HDMI inputs (1 Front), Main Out, and Sub/Zone 2 Out

Powered USB terminal (5 V, 1 A) for audio playback (rear)

2 composite video inputs and 2 component video inputs

3 digital audio inputs (2 optical and 1 coaxial)

6 analog audio inputs

Phono input (MM) and equalizer for turntable connection

11.2 multichannel pre-outs

2 subwoofer pre-outs

6.35 mm headphone jack (front)

Speaker setup mic input (front)

12 V trigger output, IR input, IP control, and RS232 support

Detachable power cable

OTHER FEATURES

Aluminum front panel, flap door, and volume control

Crossover adjustment for each channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)

A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)

Graphical User Interface with overlaid On-Screen Display via HDMI

Quick Setup Guide via GUI

Economical HDMI pass-through and Network Standby functions

3-mode display dimmer (Normal/Dim/Dimmer)

40 FM/AM random presets

Simple remote control

Rack-mounting kit (optional IRK-180-4C)

GENERAL SPECIFICATIONS

Power Output: 180 W/Ch (6 ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC)

Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Dimensions (W x H x D): 435 x 201.5 x 398 mm

Weight: 14.0 kg

*1 Front HDMI input does not support 4K/60Hz/RGB/4:4:4/4:2:2.

*2 Sub/Zone 2 HDMI does not support ARC or CEC.

*3 Availability of services may vary with region. Subscription may also be required.

*4 Audio via HDMI inputs and S/PDIF audio not supported in Zone 3.

*5 Visit App Store or the Google Play Store to check device and OS requirements and download free.

*6 DSD 11.2 MHz playback is native. DSD 5.6/2.8 MHz is converted to PCM before playback. Playback not guaranteed via wireless LAN.

*7 Playback not guaranteed via wireless LAN. Supported sampling rate via wireless LAN depends on network environment.

*8 Playback not guaranteed via wireless LAN.

Due to a policy of continuous product improvement, Onkyo reserves the right to change spe
