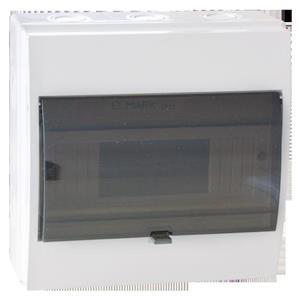

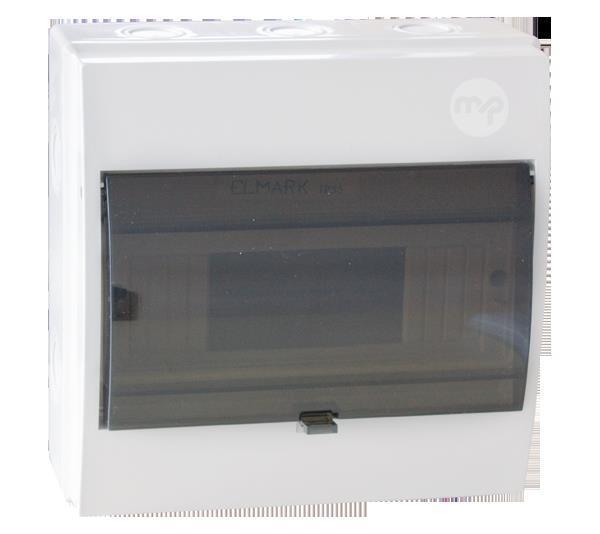

Wall-mounted electrical panel IP55 6 Elmark modules
€ 18.36
Description
IP55 wall electrical panel 6 Elmark modules
Technical characteristics
Maximum insulation voltage: 690V; 50Hz
Resistance rate fire: UL 94
C current limitation range: 2
They are made of self-extinguishing white plastic, resistant to fire and high temperatures
The device mounted in the box is protected from direct contact with the current conducting parts
Supplied with DIN rail for the assembly of the device and terminal blocks for the junction of the neutral and the earth conductor
Mounting: surface mount
Standards: EN62208; EN60439-1; EN60439-3
Model: BETA
Number of modules: 6
Number of lines: 1
Degree of protection: IP55 Type of material: Plastic
Overall size (mm) L: 162 / W: 93 / H: 214
Brand: ELMARK
EAN code: 3800131128669
Vendor code: 60101
Technical characteristics
Maximum insulation voltage: 690V; 50Hz
Resistance rate fire: UL 94
C current limitation range: 2
They are made of self-extinguishing white plastic, resistant to fire and high temperatures
The device mounted in the box is protected from direct contact with the current conducting parts
Supplied with DIN rail for the assembly of the device and terminal blocks for the junction of the neutral and the earth conductor
Mounting: surface mount
Standards: EN62208; EN60439-1; EN60439-3
Model: BETA
Number of modules: 6
Number of lines: 1
Degree of protection: IP55 Type of material: Plastic
Overall size (mm) L: 162 / W: 93 / H: 214
Brand: ELMARK
EAN code: 3800131128669
Vendor code: 60101
