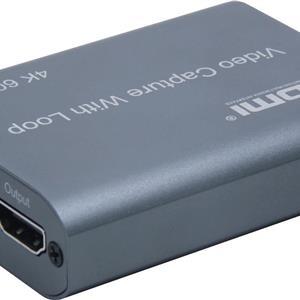

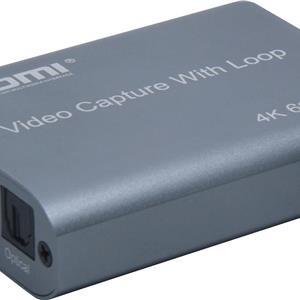

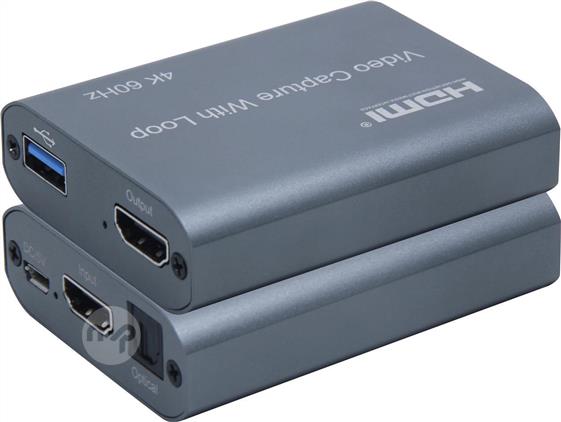

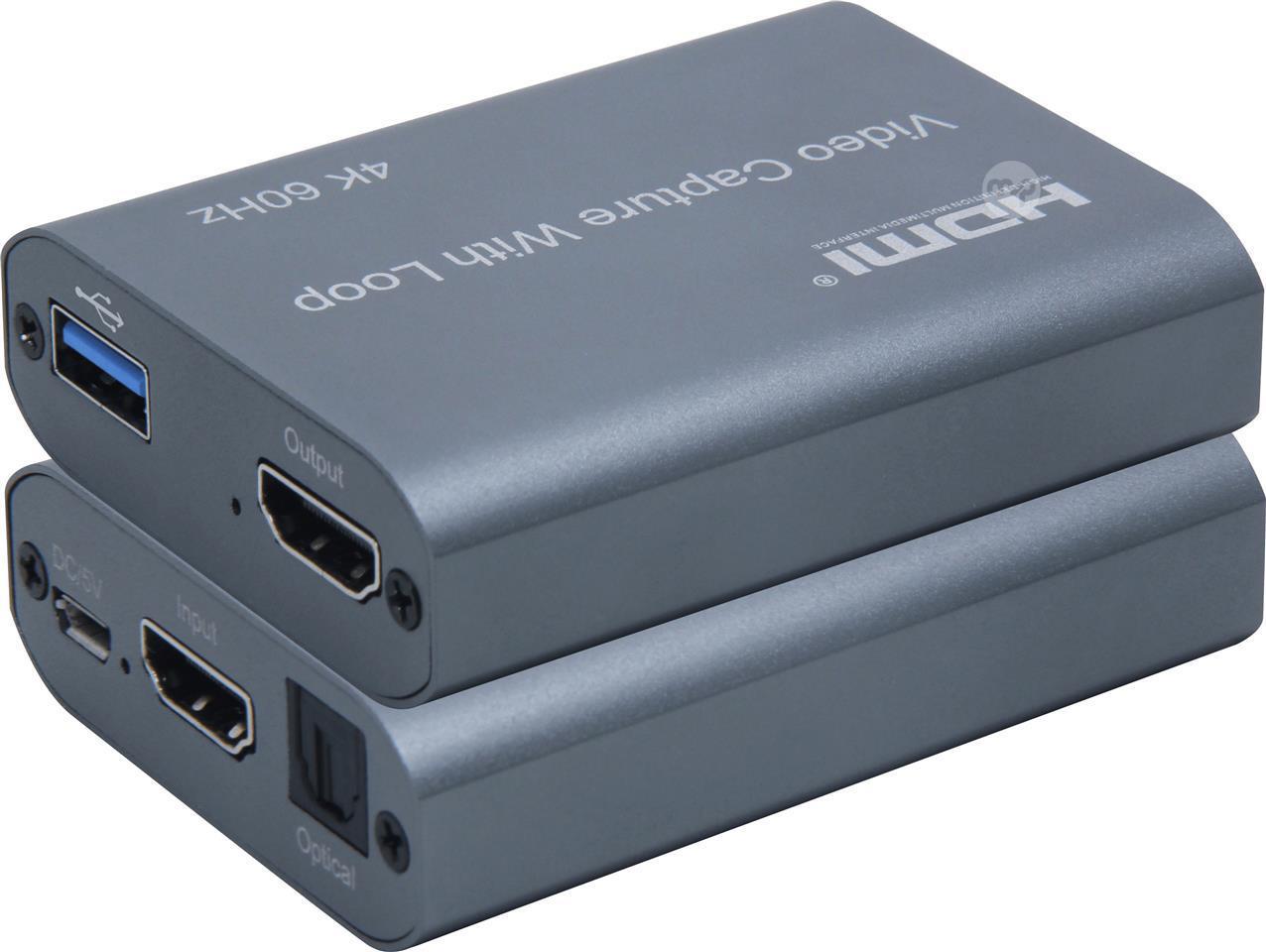

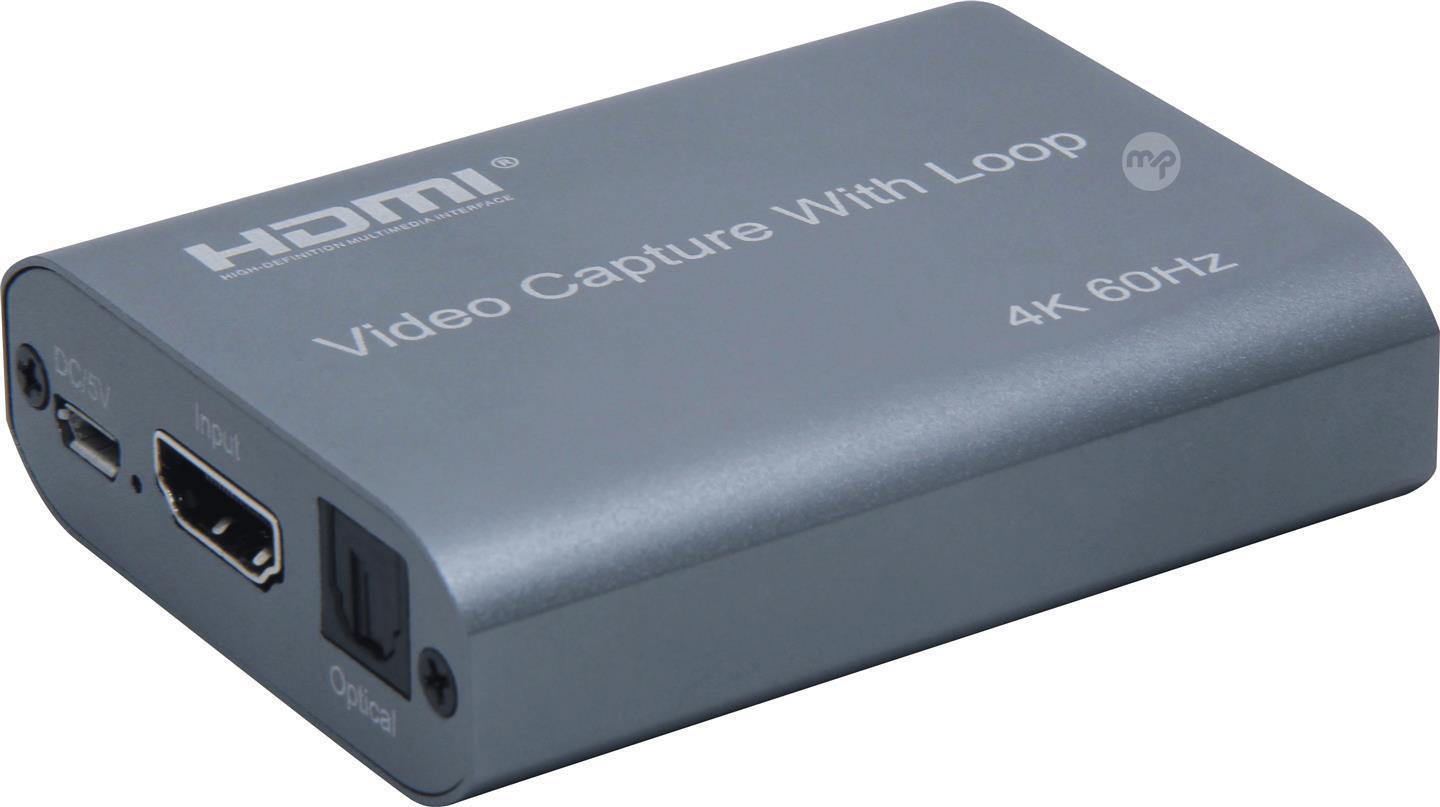

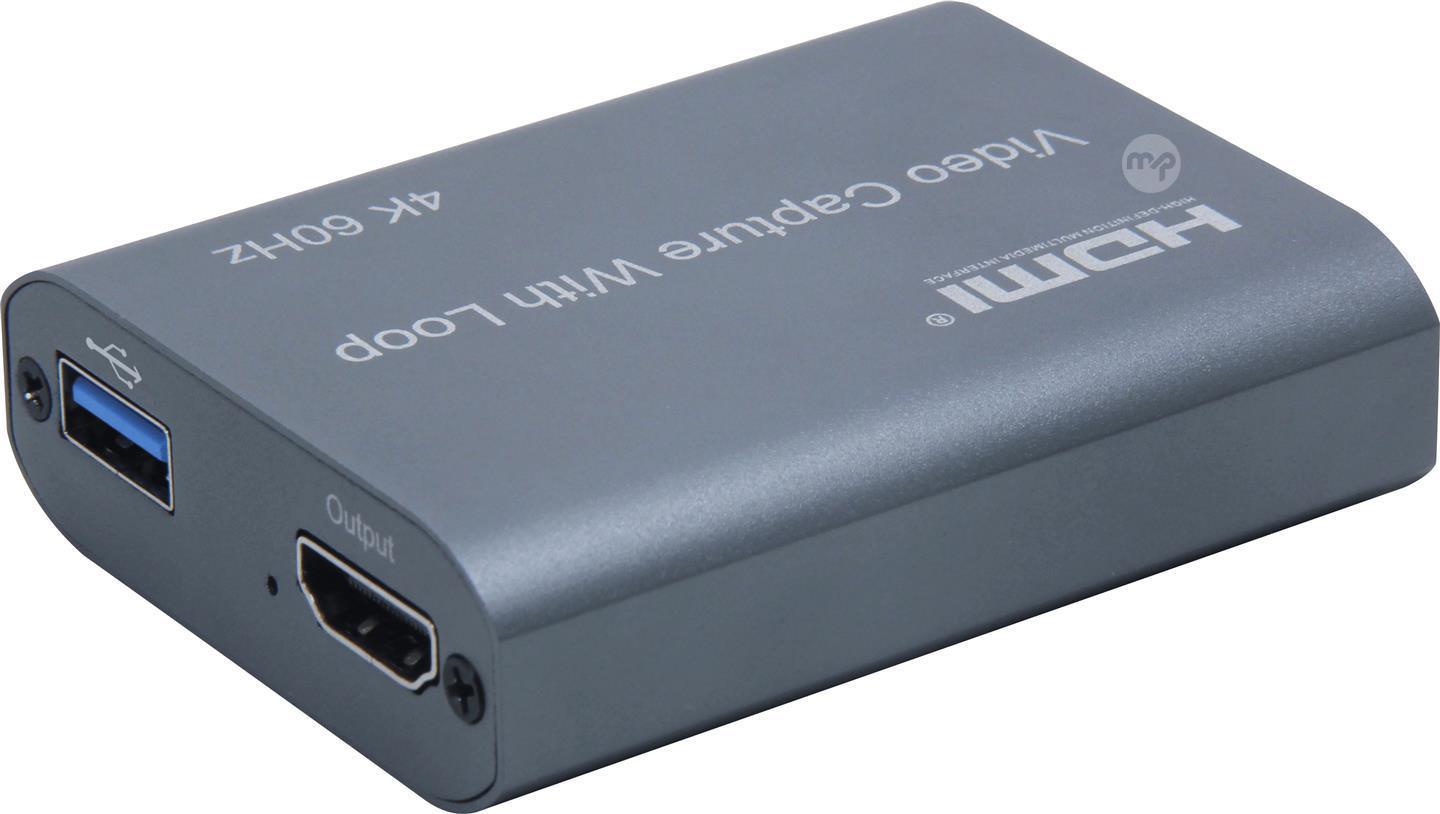

The AirBase HD-VC20-7 is a compact and powerful HDMI video capture device designed for recording, streaming, and transferring high-definition video and audio through USB. It supports up to 4K/60Hz input, making it suitable for gaming consoles, media players, cameras, laptops, and professional AV setups.

This device simultaneously outputs HDMI to a display/projector and transfers the video stream to a computer via USB for storage or live streaming.

Key Features

✔ 4K/60Hz maximum input resolution

✔ Deep Color support for rich and accurate color reproduction

✔ 6 Gbps max transmission rate, TMDS clock up to 600 MHz

✔ Extracts HDMI audio (L-PCM) for external amplifiers

✔ Works with popular software: OBS, VLC, Amcap, etc.

✔ Supports standard HDMI AWG26 cables up to 8m (1080p and below)

✔ USB Video Class UVC 1.5 and USB Audio UAC 1.0 compliant

✔ Plug-and-play, no drivers required

Technical Specifications

Input: HDMI

Output: USB (for PC), HDMI (pass-through)

Max Input Resolution: 4K @ 60Hz

Video Format: Deep Color

Audio Format: L-PCM

Max Bandwidth: 600 MHz

Max Transfer Rate: 6 Gbps

HDMI Cable Distance: ≤ 8m (1080p, AWG26)

Power: 0.7A / 5V DC

Dimensions: 70 × 56 × 19 mm

Weight: 56 g

Operating Temp: –10°C to +55°C

System Requirements

Processor:

Desktop: i5-3400 or higher

Laptop: i7-3537U 2.0 GHz or higher

Graphics:

Desktop: NVIDIA GT630 or above

Laptop: NVIDIA GT735M or above

Memory: 4 GB RAM or more

Package Includes

1× AirBase HD-VC20-7 Video Capture Device

1× Micro USB Cable

1× USB Male-to-Male Cable

1× User Manual
